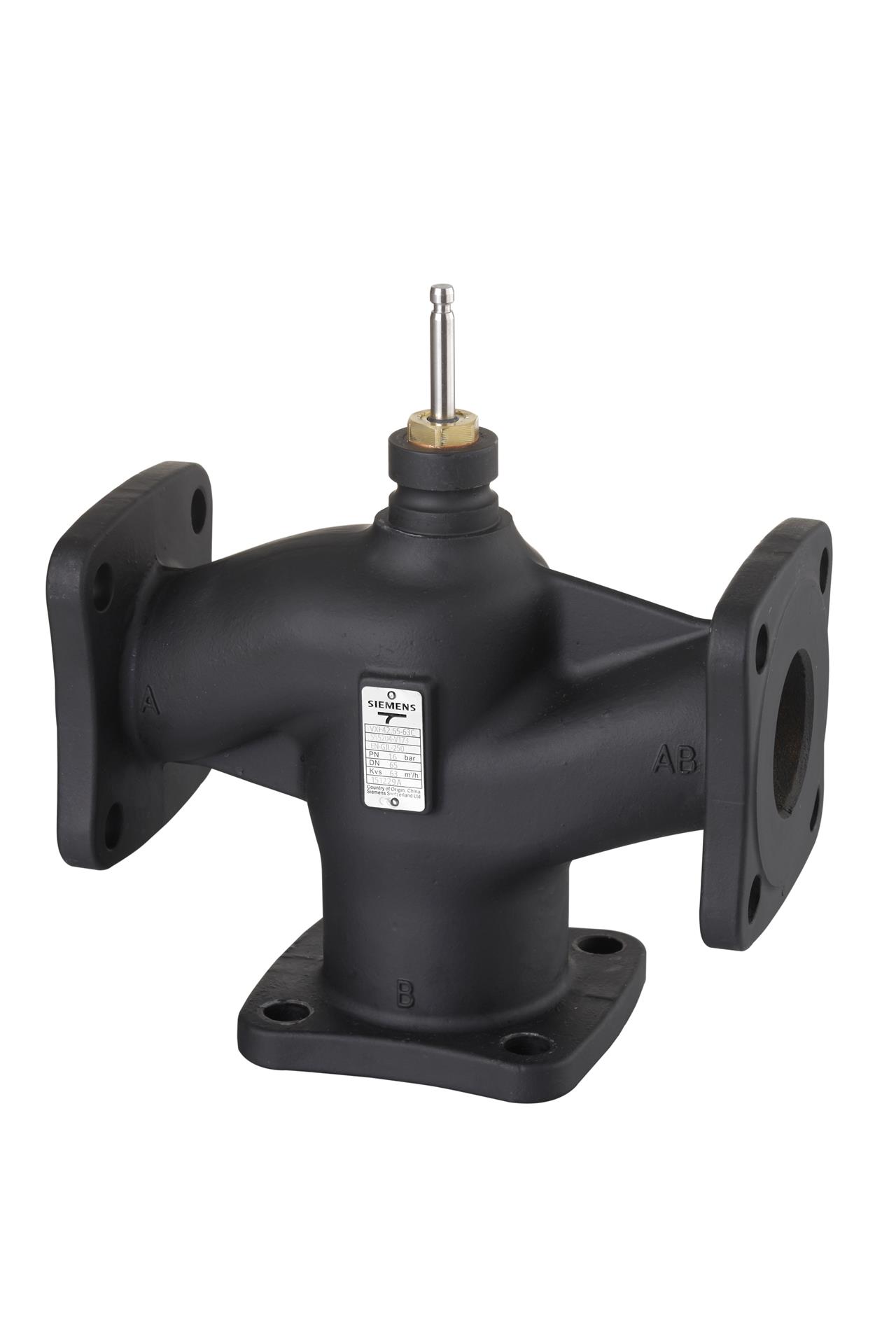

VXF42..C 3- port valves with flanged connections, PN 16
VXF42..C 3- port valves with flanged connections, PN 16
With flanged connections to ISO 7005
For chilled, low and high temperature water and brine in closed circuits
|
Attribute |
Value |
|
Stroke |
to DN80: 20, from DN100: 40 mm |
|
Leakage rate |
0…0.02% of the kvs value |
|
Leakage rate bypass |
0.5...2 % of the k vs -value |
|
Medium |
Chilled water, Brine, Water with anti-freeze, Low-temperature hot water |
|
Medium temperature |
-10…150 °C |
|
Valve characteristic |
Through-port: equal percentage, Through-port: k vs 250/400 linear, Bypass: linear |
|
Rangeability |
DN 15 .. 25: >50, DN 32...150: >100 |
|
Permissible operating pressure |
1600 kPa |
|
Material, valve body |
Cast iron EN-GJL-250 |
|
Material, inside set |
< DN40: CrNi steel / brass, > DN40: CrNi steel / bronze (faulty format) |
|
PN class |
PN 16 |
Product Variants
VXF42.100-125 - 3- port valve, flanged, PN16, DN100, kvs 125
VXF42.100-160 - 3- port valve, flanged, PN16, DN100, kvs 160
VXF42.125-200 - 3- port valve, flanged, PN16, DN125, kvs 200
VXF42.125-250 - 3- port valve, flanged, PN16, DN125, kvs 250
VXF42.150-315 - 3- port valve, flanged, PN16, DN150, kvs 315
VXF42.150-400 - 3- port valve, flanged, PN16, DN150, kvs 400
VXF42.25-10 - 3- port valve, flanged, PN16, DN25, kvs 10
VXF42.25-6.3 - 3- port valve, flanged, PN16, DN25, kvs 6.3
VXF42.32-16 - 3- port valve, flanged, PN16, DN32, kvs 16
VXF42.40-16 - 3- port valve, flanged, PN16, DN40, kvs 16
VXF42.40-25 - 3- port valve, flanged, PN16, DN40, kvs 25
VXF42.50-31.5 - 3- port valve, flanged, PN16, DN50, kvs 31.5
VXF42.50-40 - 3- port valve, flanged, PN16, DN50, kvs 40
VXF42.65-50 - 3- port valve, flanged, PN16, DN65, kvs 50
VXF42.65-63 - 3- port valve, flanged, PN16, DN65, kvs 63
VXF42.80-100 - 3- port valve, flanged, PN16, DN80, kvs 100
VXF42.80-80 - 3- port valve, flanged, PN16, DN80, kvs 80
