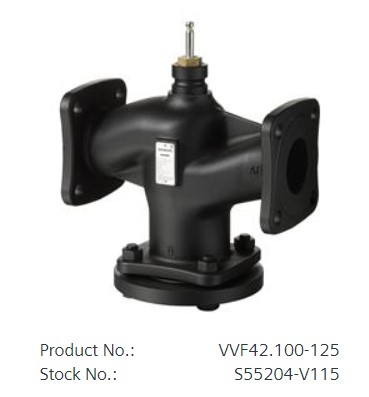

VVF42.100-125C 2-port valve flanged PN16 DN100 kvs 125
VVF42..C 2- port valves with flanged connections, PN16
Stock no. BPZ:VVF42
With flanged connections to ISO 7005
For chilled, low and high temperature water and brine in closed circuits
|
Attribute |
Value |
|
Stroke |
to DN80: 20, from DN100: 40 mm |
|
Leakage rate |
0…0.02% of the kvs value |
|
Medium temperature |
-10…150 °C |
|
Valve characteristic |
Equal percentage, k vs 250/400 linear |
|
Rangeability |
DN 15 .. 25: >50, DN 32...150: >100 |
|
Permissible operating pressure |
1600 kPa |
|
Material, valve body |
Cast iron EN-GJL-250 |
|
Material, inside set |
< DN40: CrNi steel / brass, > DN40: CrNi steel / bronze (faulty format) |
|
PN class |
PN 16 |
Product Variants
VVF42.25-10C - 2- port valve, flanged, PN16, DN25, kvs 10
VVF42.25-6.3C - 2- port valve, flanged, PN16, DN25, kvs 6.3
VVF42.32-16C - 2- port valve, flanged, PN16, DN32, kvs 16
VVF42.40-16C - 2- port valve, flanged, PN16, DN40, kvs 16
VVF42.40-25C - 2- port valve, flanged, PN16, DN40, kvs 25
VVF42.50-31.5C - 2- port valve, flanged, PN16, DN50, kvs 31.5
VVF42.50-40C - 2- port valve, flanged, PN16, DN50, kvs 40
VVF42.65-50C - 2- port valve, flanged, PN16, DN65, kvs 50
VVF42.65-63C - 2- port valve, flanged, PN16, DN65, kvs 63
VVF42.80-100C - 2- port valve, flanged, PN16, DN80, kvs 100
VVF42.80-80C - 2- port valve, flanged, PN16, DN80, kvs 80
VVF42.100-125C - 2- port valve, flanged, PN16, DN100, kvs 125
VVF42.100-160C - 2- port valve, flanged, PN16, DN100, kvs 160
VVF42.125-200C - 2- port valve, flanged, PN16, DN125, kvs 200
VVF42.125-250C - 2- port valve, flanged, PN16, DN125, kvs 250
VVF42.150-315C - 2- port valve, flanged, PN16, DN150, kvs 315
VVF42.150-400C - 2- port valve, flanged, PN16, DN150, kvs 400
| Stroke | to DN80: 20 mm, from DN100: 40 mm |
| Leakage rate | 0…0.02% of the kvs value |
| DN | 100 |
| k vs | 125 m³/h |
| Medium temperature | -10…150 °C |
| Valve characteristic | Equal percentage , k vs 250/400 linear |
| Rangeability | DN 15...25: >50 , DN 32...150: >100 |
| Permissible operating pressure | 1600 kPa |
| Material, valve body | Cast iron EN-GJL-250 |
| Material, inside set | ≤ DN40: CrNi steel / brass , ≥ DN50: CrNi steel / bronze |
| PN class | PN 16 |
| SAV.. Δp max | 125 kPa |
| SAV.. Δp s | 160 kPa |
| SKC.. Δp max | 250 kPa |
| SKC.. Δp s | 300 kPa |
