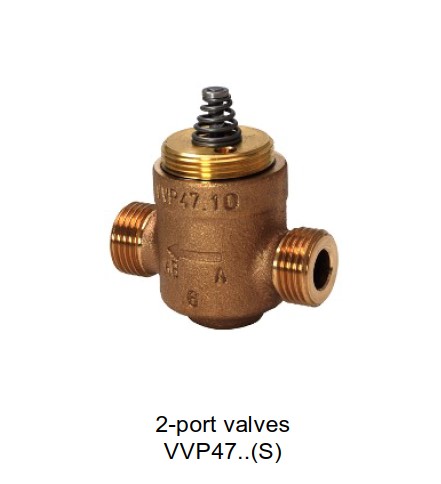

VVP47 2-port valves, PN16
VVP47 2-port valves, PN16
Stock no. BPZ:VVP47..
2-port valves with threaded connections for the control of terminal units, chilled ceilings or heating zones.
Suitable media: Water (to VDI 2035), water with anti-freeze.
Additional info
VXP47.. and VMP47.. 3-port valves are only used as mixing valves.
They are also suitable for SERTO ® compression fittings.
|
Attribute |
Value |
|
Stroke |
2.5 mm |
|
Leakage rate |
0...0.05 % of k vs value |
|
Medium |
Water with anti-freeze |
|
Medium temperature |
1...110 °C |
|
Valve characteristic |
Throughport: linear, Bypass: linear |
|
Permissible operating pressure |
1600 kPa |
|
Material, valve body |
Red brass CC491K (Rg5) |
|
PN class |
PN 16 |
|
Characteristic |
linear |
|
Material, inside set |
CrNi steel, brass |
Product Variants
VVP47.10-0.25 - 2-port seat valve, external thread, PN16, DN10, kvs 0.25
VVP47.10-0.4 - 2-port seat valve, external thread, PN16, DN10 kvs 0.4
VVP47.10-0.63 - 2-port seat valve, external thread, PN16, DN10, kvs 0.63
VVP47.10-0.63S - 2-port seat valves, external thread, PN16, DN10, kvs 0.63
VVP47.10-1 - 2-port seat valve, external thread, PN16, DN10, kvs 1
VVP47.10-1.6 - 2-port seat valve, external thread, PN16, DN10, kvs 1.6
VVP47.15-2.5 - 2-port seat valve, external thread, PN16, DN15, kvs 2.5
VVP47.20-4 - 2-port seat valve, external thread, PN16, DN20, kvs 4
VVP47.10-1S - 2-port seat valves, external thread, PN16, DN10, kvs 1
VVP47.10-1.6S - 2-port seat valves, external thread, PN16, DN10, kvs 1.6
VVP47.15-2.5S - 2-port seat valves, external thread, PN16, DN15, kvs 2.5
