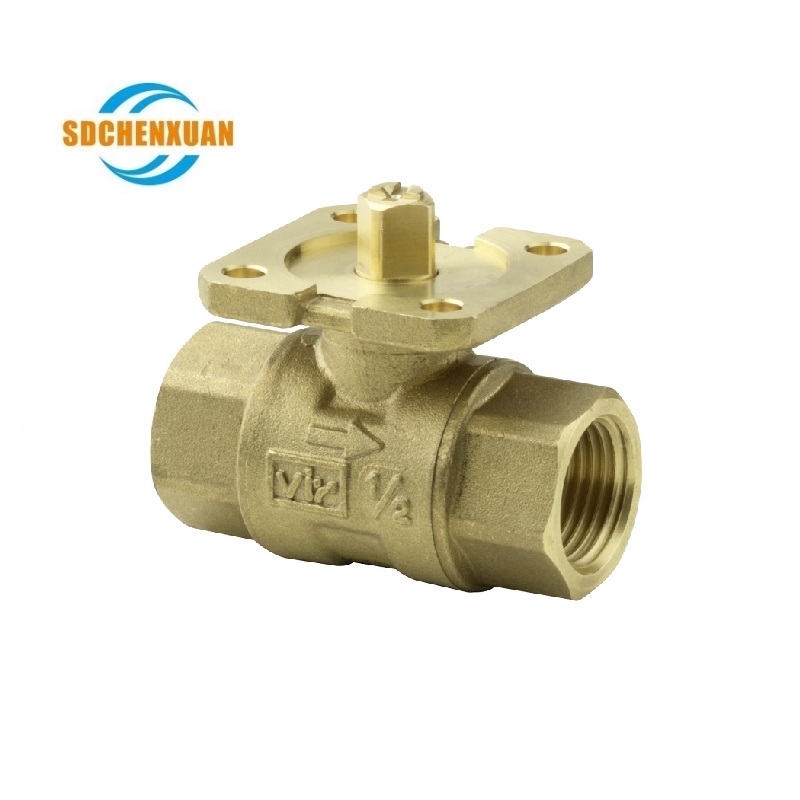

VAI61 2-port control ball valves, internally threaded, PN40
Stock no. BPZ:VAI61..
Internally threaded connections Rp.. as per ISO 7-1.
For use in heating, ventilating and air conditioning plants as a control
or safety shutoff valve. For closed circuits.
Attribute    Value
Angular rotation    90 °
Leakage rate    Zero leakage
Medium    Water, Water with anti-freeze
Medium temperature    1...120 °C
Valve characteristic    Equal-percentage
Rangeability    > 500
Permissible operating pressure    1600 kPa
Material, valve body    Brass UNS C35330 (DZR)
Material, inside set    Brass UNS C35330 (DZR), chromium-plated
PN class    PN 40
Product Variants
 VAI61.15-1 - 2-port ball valve, internal thread, PN40, DN15, kvs 1
 VAI61.15-1.6 - 2-port ball valve, internal thread, PN40, DN15, kvs 1.6
 VAI61.15-10 - 2-port ball valve, internal thread, PN40, DN15, kvs 10
 VAI61.15-2.5 - 2-port ball valve, internal thread, PN40, DN15, kvs 2.5
 VAI61.15-4 - 2-port ball valve, internal thread, PN40, DN15, kvs 4
 VAI61.15-6.3 - 2-port ball valve, internal thread, PN40, DN15, kvs 6.3
 VAI61.20-10 - 2-port ball valve, internal thread, PN40, DN20, kvs 10
 VAI61.20-4 - 2-port ball valve, internal thread, PN40, DN20, kvs 4
 VAI61.20-6.3 - 2-port ball valve, internal thread, PN40, DN20, kvs 6.3
 VAI61.25-10 - 2-port ball valve, internal thread, PN40, DN25, kvs 10
 VAI61.25-16 - 2-port ball valve, internal thread, PN40, DN25, kvs 16
 VAI61.25-6.3 - 2-port ball valve, internal thread, PN40, DN25, kvs 6.3
 VAI61.32-10 - 2-port ball valve, internal thread, PN40, DN32, kvs 10
 VAI61.32-16 - 2-port ball valve, internal thread, PN40, DN32, kvs 16
 VAI61.32-25 - 2-port ball valve, internal thread, PN40, DN32, kvs 25
 VAI61.40-16 - 2-port ball valve, internal thread, PN40, DN40, kvs 16
 VAI61.40-25 - 2-port ball valve, internal thread, PN40, DN40, kvs 25
 VAI61.40-40 - 2-port ball valve, internal thread, PN40, DN40, kvs 40
 VAI61.50-25 - 2-port ball valve, internal thread, PN40, DN50, kvs 25
 VAI61.50-40 - 2-port ball valve, internal thread, PN40, DN50, kvs 40
 VAI61.50-63 - 2-port ball valve, internal thread, PN40, DN50, kvs 63
