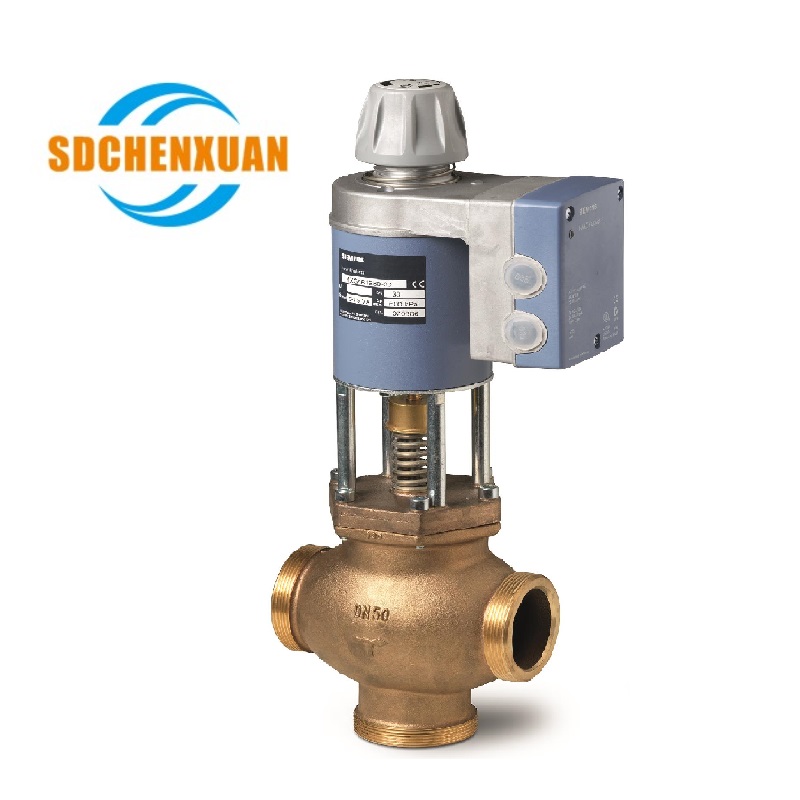

MXG461B Modulating control valves with magnetic actuator, PN16, external thread, DVGW
MXG461B Modulating control valves with magnetic actuator, PN16, external thread, DVGW
Stock no. BPZ:MXG461B..
Mixing and 2-port valves PN 16 with magnetic actuator for modulating control of DHW (mains water, water in open circuits), chilled water or low-temperature hot water.
With positioning control, position feedback signal, spring return function and manual control.
Additional info
MXG461B... valves are UL listed
Warning CAUTION!
Valve may only be used as a mixing or 2-port valve, not as a diverting valve.
|
Attribute |
Value |
|
PN class |
PN 16 |
|
Operating voltage |
AC 24, DC 20...30 V |
|
Positioning signal |
DC 0...10, DC 2...10, DC 0...20, DC 4...20, DC 0...20 V |
|
Positioning time |
<2 s (faulty format) |
|
Spring return function |
A->AB closed |
|
Position feedback |
DC 0...10, DC 2...10, DC 0...20, DC 4...20 V |
|
Degree of protection |
IP31 |
|
Ambient temperature, operation |
-5...45 °C |
|
Mounting position |
Upright to horizontal |
|
Permissible operating pressure |
1600 kPa |
|
Leakage rate |
< 0.05 % of kvs value (faulty format) |
|
Leakage rate bypass |
< 0.2 % of kvs value (faulty format) |
|
Medium temperature |
-20...130 °C |
|
Valve characteristic |
Equal-percentage, Linear |
|
Stroke resolution ΔH/H 100 |
1:1000 |
|
Material, valve body |
Red brass CC491K, low-lead amount |
|
Material, inside set |
CrNi steel |
|
Δp max |
300 kPa |
|
Δp s |
300 kPa |
|
Product conformity |
DVGW approved |
Product Variants
MXG461B15-0.6 - Mixing/2-port magnetic control valve, external thread, PN16, DN15, kvs 0.6, AC / DC 24 V, DC 0/2...10 V / 4...20 mA
MXG461B15-1.5 - Mixing/2-port magnetic control valve, external thread, PN16, DN15, kvs 1.5, AC / DC 24 V, DC 0/2...10 V / 4...20 mA
MXG461B15-3 - Mixing/2-port magnetic control valve, external thread, PN16, DN15, kvs 3, AC / DC 24 V, DC 0/2...10 V / 4...20 mA
MXG461B20-5 - Mixing/2-port magnetic control valve, external thread, PN16, DN20, kvs 5, AC / DC 24 V, DC 0/2...10 V / 4...20 mA
MXG461B25-8 - Mixing/2-port magnetic control valve, external thread, PN16, DN25, kvs 8, AC / DC 24 V, DC 0/2...10 V / 4...20 mA
MXG461B32-12 - Mixing/2-port magnetic control valve, external thread, PN16, DN32, kvs 12, AC / DC 24 V, DC 0/2...10 V / 4...20 mA
MXG461B40-20 - Mixing/2-port magnetic control valve, external thread, PN16, DN40, kvs 20, AC / DC 24 V, DC 0/2...10 V / 4...20 mA
MXG461B50-30 - Mixing/2-port magnetic control valve, external thread, PN16, DN50, kvs 30, AC / DC 24 V, DC 0/2...10 V / 4...20 mA
