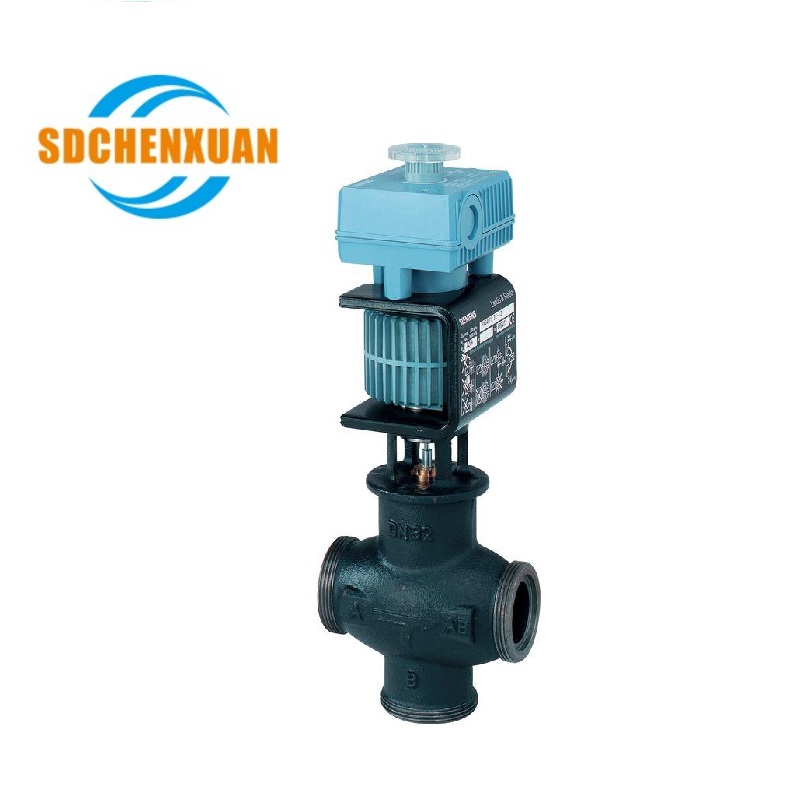

MXG461 Modulating control valves with magnetic actuator, PN16, external thread
Stock no. BPZ:MXG461..
Mixing and 2-port valves PN 16 with magnetic actuator for modulating control of chilled or low-temperature hot water systems in closed circuits. With positioning control, position feedback signal, spring return function and manual control.
Additional info
When used as a 2-port valve, port B must be closed off with the accessories (nut, cover, gasket) provided with the valve.
MXG461..P valves for media containing mineral oils (data sheet N4455)
MXG461.. valves are UL listed
Warning  CAUTION!
Valve may only be used as a mixing or 2-port valve, not as a diverting valve.
Attribute    Value
PN class    PN 16
Operating voltage    AC / DC 24  V
Positioning signal    DC 0...10, DC 2...10, DC 4..20 V
Positioning time    <2 s (faulty format)
Spring return function    A->AB closed
Position feedback    DC 0...10 V
Degree of protection    IP54
Ambient temperature, operation    -5...45 °C
Mounting position    Upright to horizontal
Permissible operating pressure    1000 kPa
Leakage rate    < 0.02 % of kvs value (faulty format)
Leakage rate bypass    < 0.2 % of kvs value (faulty format)
Medium temperature    1…130 °C
Valve characteristic    Equal-percentage, Linear
Stroke resolution ΔH/H100    1:1000
Material, valve body    Cast iron EN-GJL-250
Material, inside set    CrNi steel/brass
Product Variants
 MXG461.15-0.6 - Mixing/2-port magnetic control valve, external thread, PN16, DN15, kvs 0.6, AC / DC 24 V, DC 0/2...10 V / 4...20 mA
 MXG461.15-1.5 - Mixing/2-port magnetic control valve, external thread, PN16, DN15, kvs 1.5, AC / DC 24 V, DC 0/2...10 V / 4...20 mA
 MXG461.15-3.0 - Mixing/2-port magnetic control valve, external thread, PN16, DN15, kvs 3, AC / DC 24 V, DC 0/2...10 V / 4...20 mA
 MXG461.20-5.0 - Mixing/2-port magnetic control valve, external thread, PN16, DN20, kvs 5, AC / DC 24 V, DC 0/2...10 V / 4...20 mA
 MXG461.25-8.0 - Mixing/2-port magnetic control valve, external thread, PN16, DN25, kvs 8, AC / DC 24 V, DC 0/2...10 V / 4...20 mA
 MXG461.32-12 - Mixing/2-port magnetic control valve, external thread, PN16, DN32, kvs 12, AC / DC 24 V, DC 0/2...10 V / 4...20 mA
 MXG461.40-20 - Mixing/2-port magnetic control valve, external thread, PN16, DN40, kvs 20, AC / DC 24 V, DC 0/2...10 V / 4...20 mA
 MXG461.50-30 - Mixing/2-port magnetic control valve, external thread, PN16, DN50, kvs 30, AC / DC 24 V, DC 0/2...10 V / 4...20 mA
