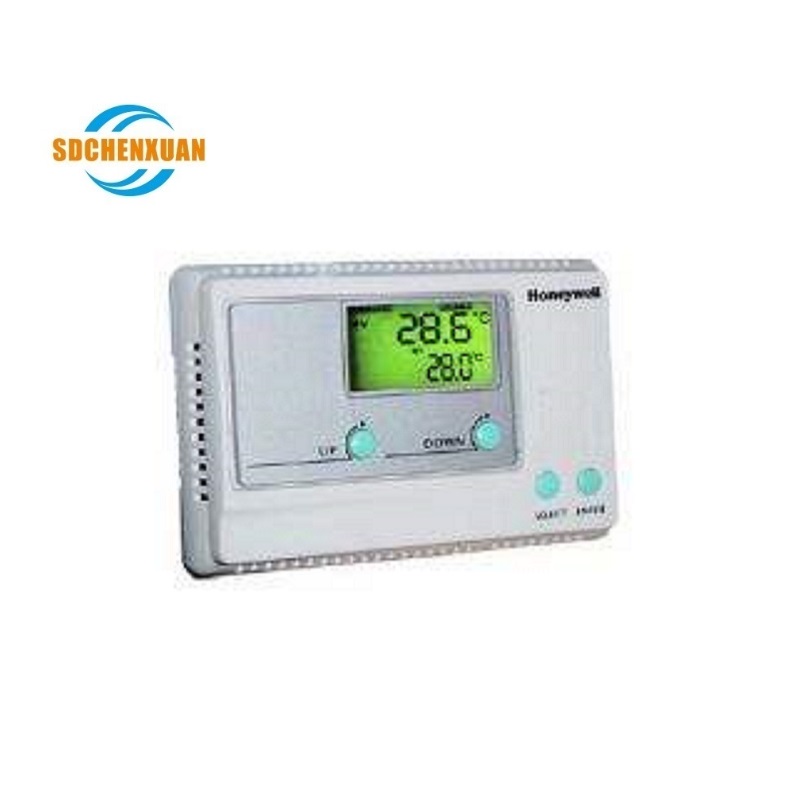

T9275A1002 Electronic Honeywell Temperature Controller
T9275A1002 Electronic Honeywell Temperature Controller
Brief introduction
Smartronic70 is Honeywell's next-generation temperature thermostat, chic appearance, easy installation, simple operation, low cost, widely used in heating, ventilation and air conditioning systems.
Smartronic70 microprocessor with proportional integral control technology, provide a friendly interface, common input and output signal allows more precise control, the entire design and abide by the principle of technological innovation and customer needs and.
Feature
PI proportional integral to provide accurate and stable. Comfortable temperature control
With backlit LCD display can display the set value and the current value
Zero energy band, ON / OFF deviation, the proportional band, temperature compensation is adjustable
Manually adjustable analog output is more convenient installation, analog input 2 ~ 10V or 4 ~ 20mA adjustable
There are wall mounted installation, panel installation, standard DIN rail mounting
Compact design, small size, shape and chic
Linkage alarm and remote control of AHU
With Modbus communication function (T9275B1001)
Regulation
|
Size |
130x85x32(LxWxD) |
|
Power |
24Vac/50/60Hz |
|
Operation |
0-60 degree,5-95%(RH) |
|
Accuracy |
0.1 |
|
Setting range |
10 degree -60 built-in sensor,-20 -110degree external load cell |
|
display range |
-25-120 degree |
|
control mode |
PI |
|
input |
external load cell),IDI(interlock,alert control) |
|
output |
IAO,IDO |
|
zero energy band |
1.5-3 |
|
off/on bias |
0-3 |
|
temperature compensation |
-3-3 degree |
|
Temperature sensor |
built-in 0,external 1 |
|
output setting AO |
heating or cooling,DO:heat or cool,DO,alarm |
|
proportional band |
0-19degree |
