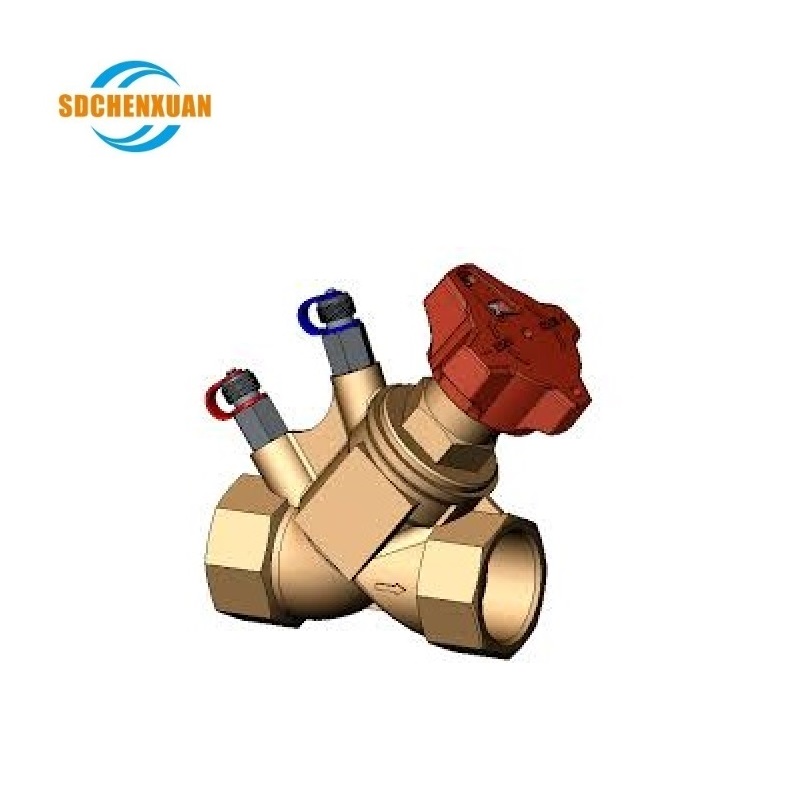

VSHB Series Static Balancing Valves
VSHB Series Static Balancing Valves
Honeywell VSHB series static balancing valves can preset the flow rate accurately by rotating handwheel and working with suitable commissioning meter. Static balancing valves can achieve static hydraulic balancing of pipe system of HVAC by presetting the maxi-mum flow rate, removing overflow and underflow of pipes.
Honeywell VSHB series static balancing valves are typically installed in the stand pipes, branch pipes and pipes of terminal equipment of HVAC system. They can also be applied in
other sys-tems with similar functional requirements.
Special Features
• Larger Kv design
Larger Kv means lower pressure drop and more
energy-saving.
• Pressure balancing globe plug
The thrust force demand of pressure balancing globe plug is much lower, so it’s easy to rotate handwheel to adjust or switch the valves, which result in easier commissioning and higher adjust-ing accuracy.
• Complete shut-off design
Complete shut-off design make the pipes shut off
during equipment testing or pipe system main-tainence.
Large size valves have a bar-connecting hole and
a suitable bar, making large size valve convenient
to switch and adjust.
• Numeric handwheel
Numeric handwheel has number indicator of the
plug position, which results in easy reading and accurate commissioning during pipe system com-missioning.
• Self-sealing testing ports
Self-sealing testing ports are used to connect the
commissioning meter, exhaust and drain.
• Valve bodies made of high performance mate-rials.
Valve bodies are made of Nodular cast iron
QT450-10.
Model list:
| VSHB16F-050 | static balancing valve, PN16 DN50 |
| VSHB16F-065 | static balancing valve,PN16 DN65 |
| VSHB16F-080 | static balancing valve,PN16 DN80 |
| VSHB16F-100 | static balancing valve,PN16 DN100 |
| VSHB16F-125 | static balancing valve,PN16 DN125 |
| VSHB16F-150 | static balancing valve,PN16 DN150 |
| VSHB16F-200 | static balancing valve,PN16 DN200 |
| VSHB16F-250 | static balancing valve,PN16 DN250 |
| VSHB16F-300 | static balancing valve,PN16 DN300 |
| VSHB16F-350 | static balancing valve,PN16 DN350 |
| VSHB16F-400 | static hydraulic balancing valve, PN16,DN400 |
| VSHB16F-450 | static hydraulic balancing valve, PN16,DN450 |
| VSHB16F-500 | static hydraulic balancing valve, PN16,DN500 |
| VSHB25F-065 | static hydraulic balancing valve, PN25,DN65 |
| VSHB25F-080 | static hydraulic balancing valve, PN25,DN80 |
| VSHB25F-100 | static hydraulic balancing valve, PN25,DN100 |
| VSHB25F-125 | static hydraulic balancing valve, PN25,DN125 |
| VSHB25F-150 | static hydraulic balancing valve, PN25,DN150 |
| VSHB25F-200 | static hydraulic balancing valve, PN25,DN200 |
| VSHB25F-250 | static hydraulic balancing valve, PN25,DN250 |
| VSHB25F-300 | static hydraulic balancing valve, PN25,DN300 |
| VSHB25F-350 | static hydraulic balancing valve, PN25,DN350 |
| VSHB25F-400 | static hydraulic balancing valve, PN25,DN400 |
| VSHB25F-450 | static hydraulic balancing valve, PN25,DN450 |
| VSHB25F-500 | static hydraulic balancing valve, PN25,DN500 |
| VSHB25R-015 | static hydraulic balancing valve, PN25,DN15 |
| VSHB25R-020 | static hydraulic balancing valve, PN25,DN20 |
| VSHB25R-025 | static hydraulic balancing valve, PN25,DN25 |
| VSHB25R-032 | static hydraulic balancing valve, PN25,DN32 |
| VSHB25R-040 | static hydraulic balancing valve, PN25,DN40 |
| VSHB25R-050 | static hydraulic balancing valve, PN25,DN50 |
