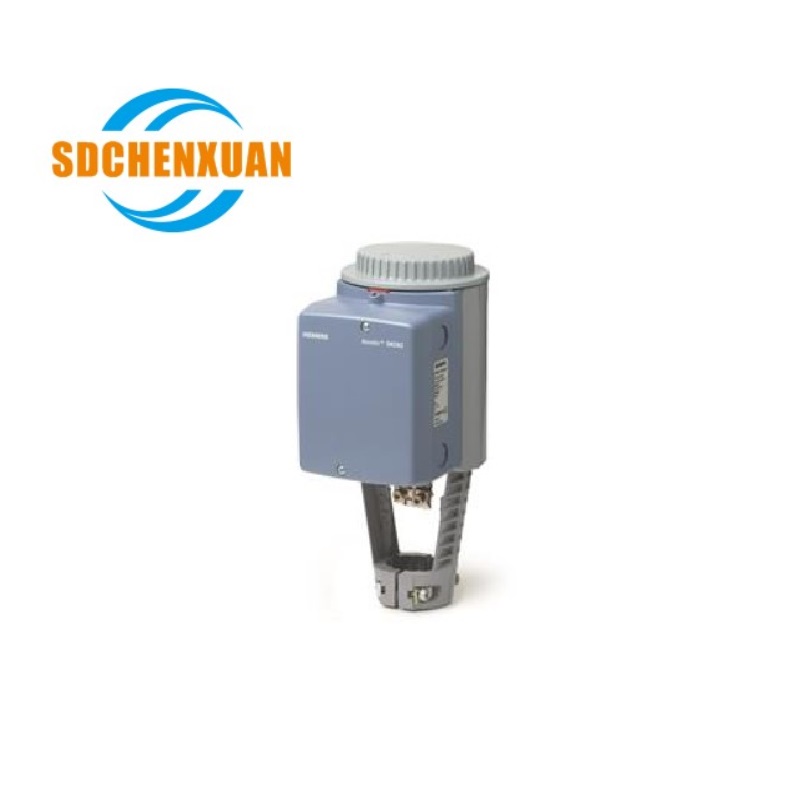

SKD60 Electrohydraulic Actuator
SKD60/SKD62 Electrohydraulic actuators 1000 N for valves with 20 mm stroke
Stock no. BPZ:SKD60/SKD62..
Overload-proof through travel-dependent, electronic switching off in end position. With die-cast aluminium housing and yoke for valves with 20 mm stroke. Optional function with one auxiliary switch. With manual control.
Additional info
SKD..U, SKD..UA are UL listed. Control devices MK..5.. are control devices with safety shut-off function per DIN EN 14597.
|
Attribute |
Value |
|
Positioning signal |
DC 0...10, DC 4...20, 0...1000 V |
|
Positioning force |
1000 N |
|
Stroke |
20 mm |
|
Spring return function |
SKD62.. |
|
Position feedback |
DC 0...10, DC 4...20 V |
|
Degree of protection |
IP54 |
|
Medium temperature |
-25…150 °C |
|
Ambient temperature, operation |
-15...50 °C |
|
Mounting position |
Upright to horizontal |
Product Variants
SKD60 - Electrohydraulic actuator, 1000 N, 20 mm, AC 24 V, DC 0...10/V 4...20 mA
SKD60U - Electrohydraulic actuator, 1000 N, 20 mm, AC 24 V, DC 0...10/V 4...20 mA, UL
SKD62 - Electrohydraulic actuator, 1000 N, 20 mm, AC 24 V, DC 0...10 V/4...20 mA, spring return
SKD62UA - Electrohydraulic actuator, 1000 N, 20 mm, AC 24 V, DC 0...10 V/4...20 mA, spring return, UL
SKD62U - Electrohydraulic actuator, 1000 N, 20 mm, AC 24 V, DC 0...10 V/4...20 mA, spring return, UL
| Operating voltage | AC 24 V |
| Positioning signal | DC 0...10 V, DC 4...20 mA, 0...1000 Ohm |
| Power consumption | 10 VA |
| Positioning force | 1000 N |
| Positioning time | Open 30 s, Close 15 s |
| Stroke | 20 mm |
| Spring return function | No |
| Position feedback | DC 0...10 V, DC 4...20 mA |
| Degree of protection | IP54 |
| Medium temperature | -25…150 °C |
| Ambient temperature, operation | -15...50 °C |
| Mounting position | Upright to horizontal |
