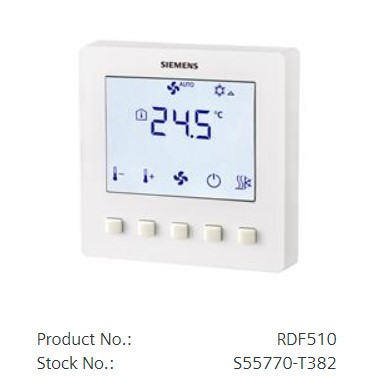

RDF510 Fan coil room thermostat

For 2-pipe and 4-pipe fan coil units LCD backlit display

RDF510 Flush-mount room thermostat for 2-pipe fan coils

Operating voltage	AC 230 V
Power consumption	Max. 12 VA
Setpoint setting range	5...40 °C
Switching differential	0.5...6 K (factory setting: 1 K)
Relay outputs	Fan: N.O. contacts, non-floating , Valve: changeover contacts, non-floating
Relay outputs, number	4
Relay output, switching voltage	AC 230 V
Relay output, switching current	4 (2) A
Type of fixing	Recessed square conduit box BS4662 with fixing centres of 60.3 mm
Dimensions (W x H x D)	86 x 86 x 39 mm
