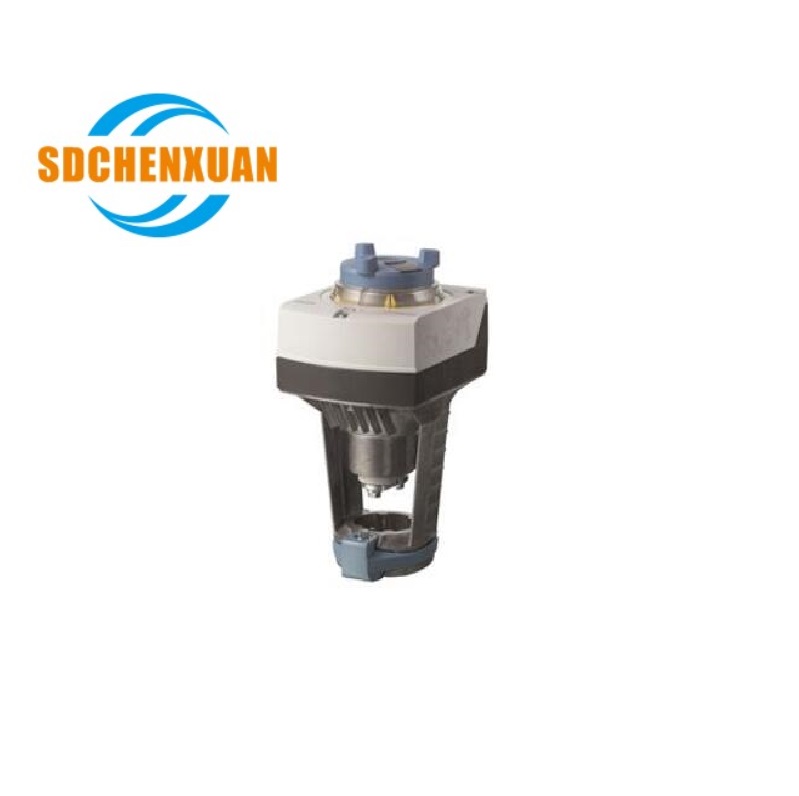

SAX61.03 Electromotoric Actuators
SAX Electromotoric actuators 800 N for valve with 20 mm stroke
Electromotoric actuator for the operation of Siemens 2-port and 3-port valves, types VVF.., VVG.., VXF.. and VXG.. with 20 mm stroke as control and safety shut-off valves in heating, ventilation and air conditioning systems.
With manual adjuster and position indicator, status indication per LED.
Optional functions with auxiliary switches, potentiometer, functional module and stem heater.
Additional info
SA..81.., SA..61.. are UL listed.
|
Attribute |
Value |
|
Positioning force |
800 N |
|
Stroke |
20 mm |
|
Degree of protection |
IP54 |
|
Ambient temperature, operation |
-5…55 °C |
|
Medium temperature |
-25…130 °C |
|
Mounting position |
Upright to horizontal |
|
Position feedback |
DC 0...10 V (SA..6..) |
Product Variants
SAX31.00 - Electromotoric actuator, 800 N, 20 mm, AC 230 V, 3P
SAX31.03 - Electromotoric actuator, 800 N, 20 mm, AC 230 V, 3P, 30 s
SAX61.03 - Electromotoric actuator, 800 N, 20 mm, AC/DC 24 V, DC 0…10 V / DC 4…20 mA, 30 s
SAX81.00 - Electromotoric actuator, 800 N, 20 mm, AC/DC 24 V, 3P
SAX81.03 - Electromotoric actuator, 800 N, 20 mm, AC/DC 24 V, 3P, 30 s
Use -:
To operate Siemens 2-port and 3-port valves, types V..F21.., V..F22.., V..F31..,
V..F32.., V..F40.., V..F41.., V..G41.., V..F42.., VVF52.. and V..F53.. with 20 mm
stroke as control and safety shutoff valves in heating, ventilation and air conditioning plants.
| Positioning force | 800 N |
| Stroke | 20 mm |
| Power consumption | 8 VA |
| Positioning time | 30 s |
| Positioning signal | DC 0…10 V, DC 4…20 mA, 0…1000 Ohm |
| Degree of protection | IP54 |
| Ambient temperature, operation | -5…55 °C |
| Medium temperature | -25…130 °C |
| Mounting position | Upright to horizontal |
| Operating voltage | AC 24 V, DC 24 V |
| Position feedback | DC 0...10 V |
| Spring return function | no |
