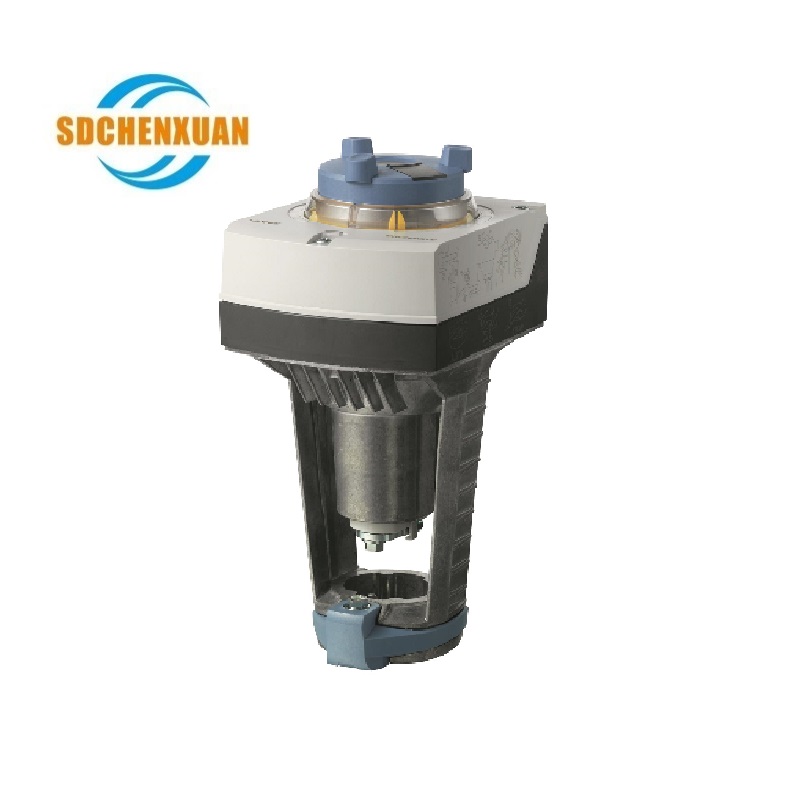

SAV31.00 Electromotoric Actuator
SAV Electromotoric actuators 1600 N for valves with 20/40 mm stroke
Electromotoric actuator for the operation of Siemens 2-port and 3-port valves, types VVF.. and VXF.. with 20/40 mm stroke as control and safety shut-off valves in heating, ventilation and air conditioning systems.
With manual adjuster and position indicator, status indication per LED.
Optional functions with auxiliary switches, potentiometer, functional module and stem heater.
Additional info
SA..81.., SA..61.. are UL listed.
|
Attribute |
Value |
|
Positioning force |
1600 N |
|
Stroke |
40 mm |
|
Positioning time |
120 s |
|
Degree of protection |
IP54 |
|
Ambient temperature, operation |
-5…55 °C |
|
Medium temperature |
-25…130 °C |
|
Mounting position |
Upright to horizontal |
|
Position feedback |
DC 0...10 V (SA..6..) |
Product Variants
SAV31.00 - Electromotoric actuator, 1600 N, 20/40 mm, AC 230 V, 3P
SAV61.00 - Electromotoric actuator, 1600 N, 20/40 mm, AC/DC 24 V, DC 0…10 V / DC 4…20 mA
SAV81.00 - Electromotoric actuator, 1600 N, 20/40 mm, AC/DC 24 V, 3P
| Positioning force | 1600 N |
| Stroke | 40 mm |
| Power consumption | 6.5 VA |
| Positioning time | 120 s |
| Positioning signal | 3-position |
| Degree of protection | IP54 |
| Ambient temperature, operation | -5…55 °C |
| Medium temperature | -25…130 °C (150 °C) |
| Mounting position | Upright to horizontal, up to 150 °C with horizontal mounting position |
| Operating voltage | AC 230 V |
| Position feedback | DC 0...10 V (SA..6..) |
