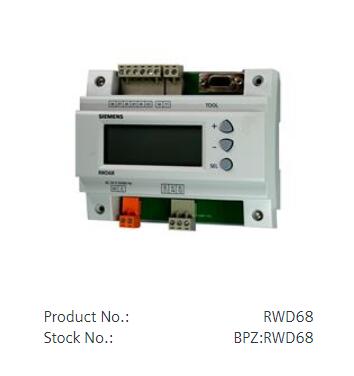

RWD68 Universal controller AC 24 V 1 modulating and 1 2-point output

Universal controller with P or PI action for heating, ventilation and air conditioning.

Universal controller with P or PI action for heating, ventilation and air conditioning. Auxiliary functions

Operating voltage	AC 24 V
Frequency	50/60 Hz
Power consumption	3 VA
Positioning signal	2-position , DC 0…10 V
Analog outputs, number	1
Analog outputs	DC 0..10, ±1 mA
Analog output, signal	DC 0...10 V
Analog output, current	Max. 1 A
Digital inputs	Potential-free input signal
Universal inputs, number	2
Universal input, signal	LG-Ni1000 , DC 0...10 V, Pt1000
Relay outputs, number	1
Relay outputs	Changeover contact, potential-free
Relay output, switching voltage	AC 24…230 V, DC 5…30 V
Relay output, switching current	AC 0.02…3 (4) A, DC 0.1…4 A
Degree of protection	IP20
Dimensions (W x H x D)	130 x 114 x 57 mm
