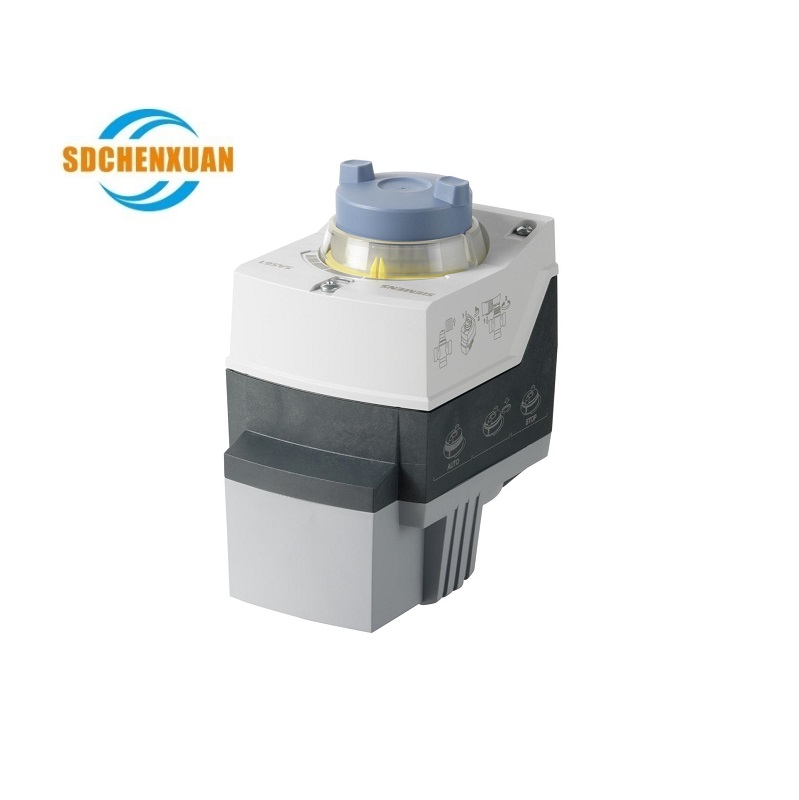

SAS61.33 SAS61 Electromotoric Actuator
Fast positioning time. With spring return function. Manual control with automatic reset to electrical operation. Plug-in space for auxiliary switch.
| SAS Electromotoric actuators with 5.5 mm stroke and 400 N positioning force |
| ★ SAS31.. Operating voltage AC 230 V, 3-position control signal |
| ★ SAS61.. Operating voltage AC 24 V / DC 24 V, positioning signal DC 0...10 V / DC 4...20 mA / 0...1000 Ω |
| ★ SAS61../MO operating voltage AC 24 V / DC 24 V, RS485 for Modbus RTU communication |
| ★ SAS81.. Operating voltage AC/DC 24 V, 3-position control signal |
| ★ For direct mounting on valves; no adjustments required |
| ★ Manual adjuster, position and status indication (LED) |
| ★ Optional function extension with auxiliary switch |
| Application |
| To operate Siemens 2-port and 3-port valves: |
| ★ Types V..G44.., VVG55.., and VVG549.. |
| ★ 5.5 mm stroke Used as control and shutoff valves in heating and ventilation plants. |
| Together with the ASK30 mounting kit, all former Landis & Gyr valves with 4 mm or 5.5 mm stroke can also be operated: X3i.., VVG45.., VXG45.., VXG46.., VVI51.. |
| Positioning force | 400 N |
| Stroke | 5.5 mm |
| Power consumption | 5.9 VA |
| Spring return function | Yes (14 s) |
| Degree of protection | IP54 |
| Ambient temperature, operation | -5…55 °C |
| Medium temperature | 1…130 °C |
| Mounting position | Upright to horizontal |
| Operating voltage | AC 24 V, DC 24 V |
| Position feedback | DC 0...10 V |
