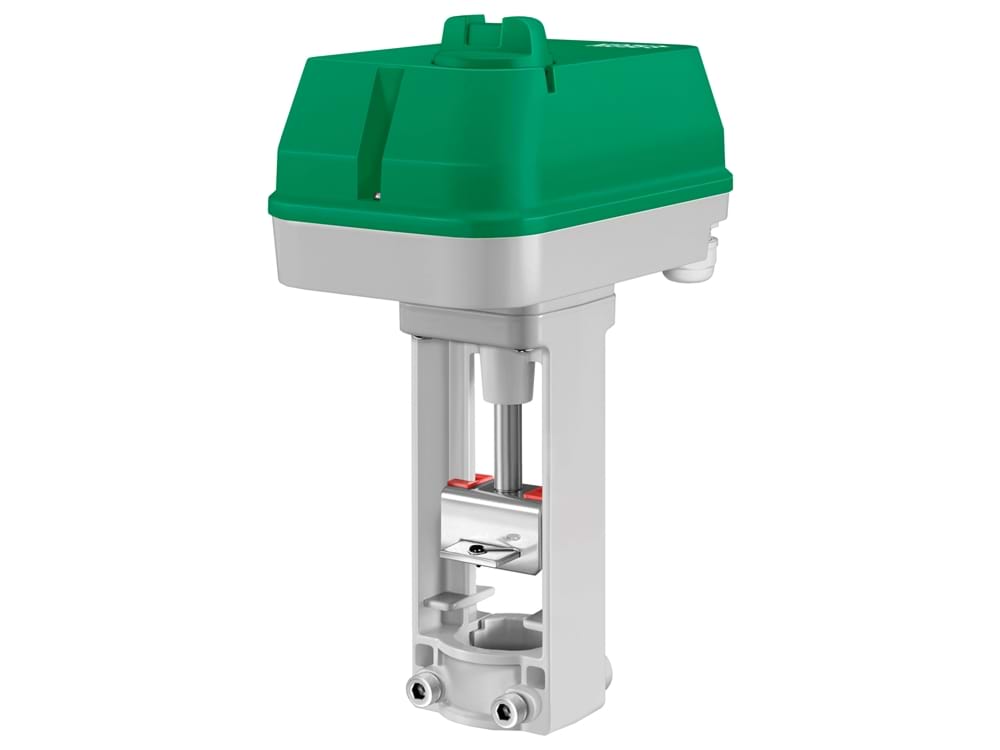

RVAN18-24A alve actuators 1800 N
RVAN18-24A alve actuators, 500-2500 N, 24 V supply voltage and 0(2)...10 V DC control
Valve actuator with automatic stroke adjustment for control of Regin’s range of valves. Available in models with actuator force of 500, 1000, 1800 or 2500 N. The actuators can be operated manually with the manual override mechanism on the lid. Using an adapter kit, the actuator can also be adapted for use with other valves on the market.
Specifications
| Max. power consumption | 8.6 W / 22.4 VA |
|---|---|
| Force | 1800 N |
| Stroke | 10…52 mm |
| Stroke time | 3 s/mm |
| Supply voltage | 24 V AC/DC |
|---|---|
| Control signal | 0...10 V DC or 2...10 V DC (or 4…20 mA with a 500 Ω resistor connected) |
| Ambient temperature | 0…50°C |
| Storage temperature | -40...80°C |
| Ambient humidity | 10...90 % RH |
| Protection class | IP54 |
