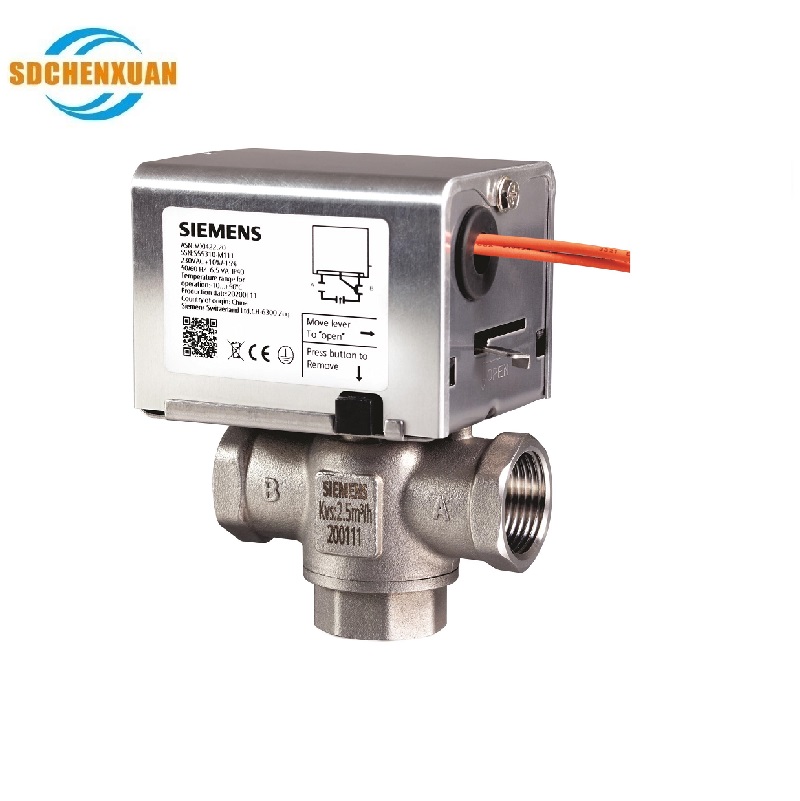

MXI422 3-port zone valves & actuators, PN16
MXI422.15 3-port zone valves & actuators, PN16
Control valve for use with terminal units for heating and colling zones. The actuators are equipped with a manual lever and spring return facility (valve closed).
MXI422.20 3-port zone valves & actuators, PN16
Control valve for use with terminal units for heating and colling zones. The actuators are equipped with a manual lever and spring return facility (valve closed).
MXI422.25 3-port zone valves & actuators, PN16
Control valve for use with terminal units for heating and colling zones. The actuators are equipped with a manual lever and spring return facility (valve closed).
Technical Specifications
PN class PN 16
Operating voltage AC 230 V
Power consumption 6.5 VA
Positioning signal 2-port
Positioning time Opening 15 s (motor-driven) , Closing 10 s (spring force)
Degree of protection IP40
Ambient temperature, operation -10 ... +55 °C
Mounting position Upright up to 85 °C inclined
Permissible operating pressure 1600 kPa
Leakage rate Tight shut-off (100 % airtight)
Medium temperature 1…95 °C
Material, inside set Stainless/NBR
