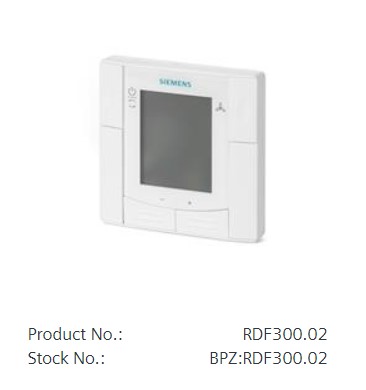

RDF300.02 Flush-mount room thermostat

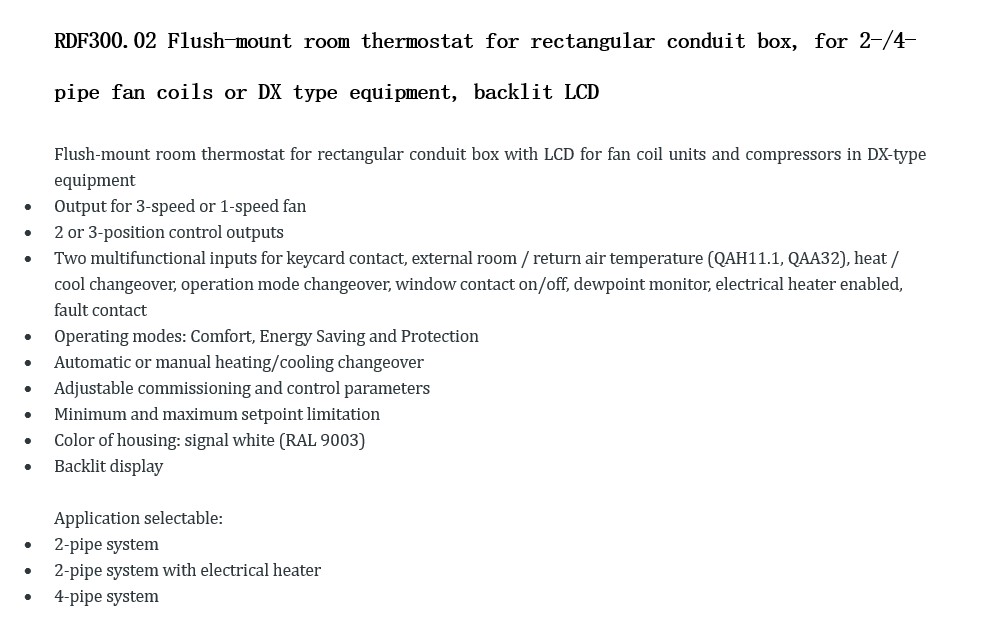

RDF300.02 Flush-mount room thermostat for rectangular conduit box, for 2-/4-pipe fan coils or DX type equipment, backlit LCD

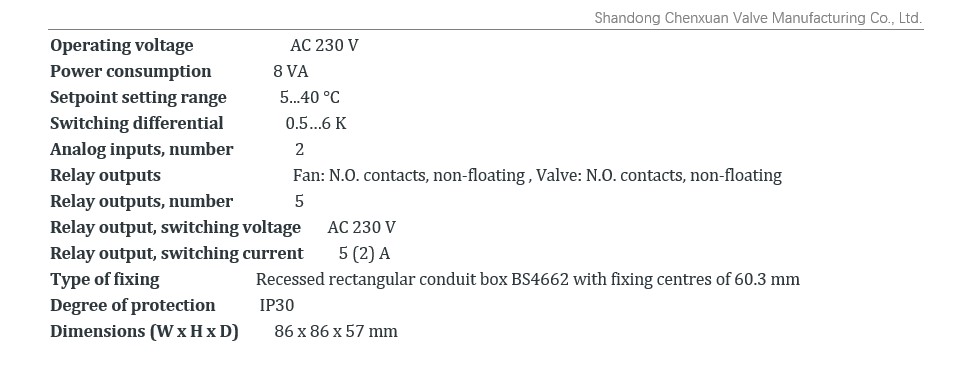

Operating voltage	AC 230 V
Power consumption	8 VA
Setpoint setting range	5...40 °C
Switching differential	0.5…6 K
Analog inputs, number	2
Relay outputs	Fan: N.O. contacts, non-floating , Valve: N.O. contacts, non-floating
Relay outputs, number	5
Relay output, switching voltage	AC 230 V
Relay output, switching current	5 (2) A
Type of fixing	Recessed rectangular conduit box BS4662 with fixing centres of 60.3 mm
Degree of protection	IP30
Dimensions (W x H x D)	86 x 86 x 57 mm
