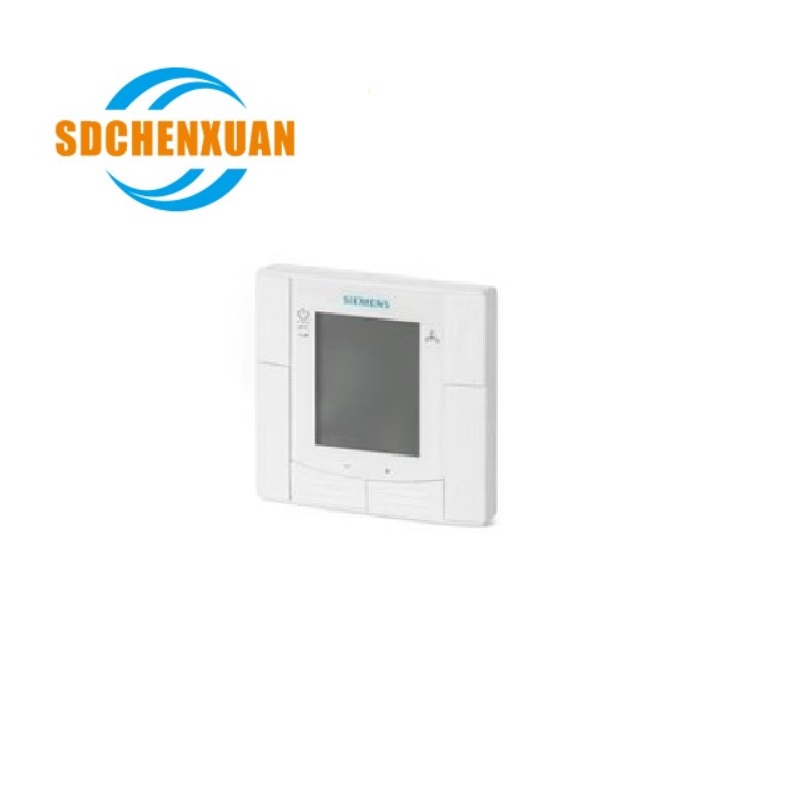

RDF302 room thermostat
RDF302 Flush-mount room thermostat for rectangular conduit box with Modbus communications, 2-/4-pipe fan coils or DX type equipment
-
Modbus communications
-
For heating and/or cooling applications
-
2 or 3-position control outputs
-
Output for 1-speed or 3-speed fan
-
2 multifunctional inputs for keycard contact, external room / return air temperature (QAH11.1, QAA32), heat / cool changeover, operation mode changeover, window contact on/off, dewpoint monitor, electrical heater enabled, fault contact
-
Operating modes: Comfort, Economy and Protection
-
Automatic or manual heating/cooling changeover
-
Adjustable commissioning and control parameters
-
Minimum and maximum setpoint limitation
-
Color of housing: signal white (RAL 9003)
-
Backlit display
Application selectable:
-
2-pipe system
-
2-pipe system with electrical heater
-
4-pipe system
-
Operating voltage AC 230 V
-
Power consumption 7 VA
-
Setpoint setting range 5...40 °C
-
Switching differential 0.5…6 K
-
Communication Bus: Modbus RTU (RS 485)
-
Analog inputs, number 2
-
Relay outputs Fan: N.O. contacts, non-floating , Valve: N.O. contacts, non-floating
-
Relay outputs, number 5
-
Relay output, switching voltage AC 230 V
-
Relay output, switching current 5 (2) A
-
Type of fixing Recessed rectangular conduit box BS4662 with fixing centres of 60.3 mm
-
Degree of protection IP30
-
Dimensions (W x H x D) 86 x 86 x 57 mm
Application selectable:
-
2-pipe system
-
2-pipe system with electrical heater
-
4-pipe system
-
Operating voltage AC 230 V
-
Power consumption 7 VA
-
Setpoint setting range 5...40 °C
-
Switching differential 0.5…6 K
-
Communication Bus: Modbus RTU (RS 485)
-
Analog inputs, number 2
-
Relay outputs Fan: N.O. contacts, non-floating , Valve: N.O. contacts, non-floating
-
Relay outputs, number 5
-
Relay output, switching voltage AC 230 V
-
Relay output, switching current 5 (2) A
-
Type of fixing Recessed rectangular conduit box BS4662 with fixing centres of 60.3 mm
-
Degree of protection IP30
-
Dimensions (W x H x D) 86 x 86 x 57 mm
