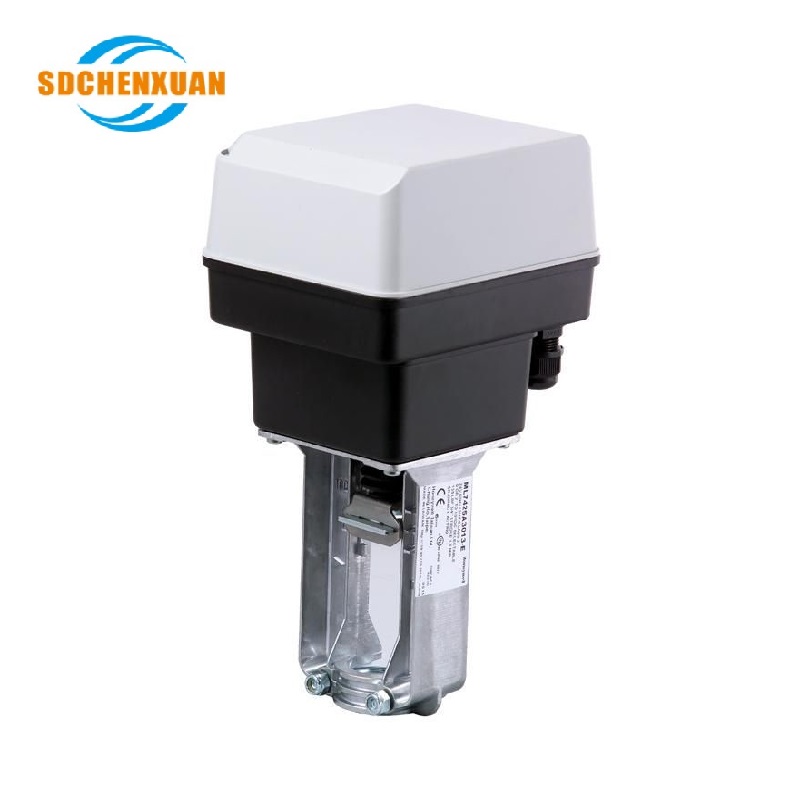

ML7425A8018E Valve Actuator

• Contact us
• DownLoad

Overview

The Spring Return Electric Linear Valve Actuators are floating control actuators used with controllers that provide a switched or floating single-pole double-throw (spdt) output. These actuators operate standard Honeywell valves in heating, ventilating, and air conditioning (HVAC) applications. The ML7425 Spring Return Electric Linear Valve Actuators are modulating control actuators used with controllers that provide an analog output of 0 to 10 Vdc or 2 to 10 Vdc. These actuators operate standard Honeywell valves in heating, ventilating, and air conditioning (HVAC) applications. An internal selector can be used to reverse the direction of action.

Features

• Easy and quick installation on valves with 1 3/8 in. bonnet and 3/4 in. stroke
• No separate linkage required
• Conduit connector standard
• No adjustments required on linkage
• Accurate valve positioning
• Low power consumption
• High close-off ratings
• Force limiting end switches
• Internal manual operator
• Synchronous motor
• Maintenance free

Product Specifications

Application

HVAC

Dimensions (in.):11 1/4 in. high x 5 5/16 in. wide x 6 5/16 in. deep

Dimensions (mm):284 mm high x 135 mm wide x 161 mm deep

Includes:1/2 in. conduit hub; 1/2 in. flexible conduit adapter

Weight (lb):5.1 lb

Weight (kg):2.3 kg

Materials:ABS-FR Plastic, aluminum yoke

Item Type:Product

Mounting:Directly on V5011/V5013 Globe Valves and VGF Flanged Globe Valves (3/4" or 20mm stroke)

Frequency:50 Hz; 60 Hz

Approvals, Underwriters Laboratories Inc.

Flammability Rating UL94V-5V

Electrical Connections:Screw terminals

Operating Humidity Range (% RH):5 to 95% RH

Supply Voltage:24 Vac ±15%

Power Consumption:Driving-- 12 VA

Shipping and Storage Temperature Range (F):-40 F to +158 F

Shipping and Storage Temperature Range (C):-40 C to +70 C

Approvals, CE:Recognized

Ambient Temperature Range (F):14 F to 122 F

Ambient Temperature Range (C):-10 C to +50 C

Environmental, Electrical or Ingress Protection Rating

Class I Insulation (24 Vac),IP54

Internal Auxiliary Switch:0

Fluid Temperature (C):150 C Maximum

Fluid Temperature (F):300 F Maximum

Actuator Type:Valve

Control Signal:0 to 10 Vdc; 2 to 10 Vdc

Fail Safe Mode:Stem down on power failure

Torque Rating (lb-in.):135 lbf

Torque Rating (Nm):600 N

Spring Return Torque/Force (lb-in., lbf):135 lbf

Spring Return Torque/Force (Nm, N):600 N

Switches:Yes

Stroke (in.):3/4 in.

Stroke (mm):20 mm

Cable:Conduit connector and one knockout on actuator case

Timing, Nominal:Driving @ 60 Hz-- 90 sec

Spring Return Timing:Nominal-- 12 sec

Feedback:2-10 Vdc

Manual operation:Manual override winding

Spring Return Direction:Stem down on power failure
