CX4000 Electric mechanical actuator 4000 N for valves with 40 mm stroke

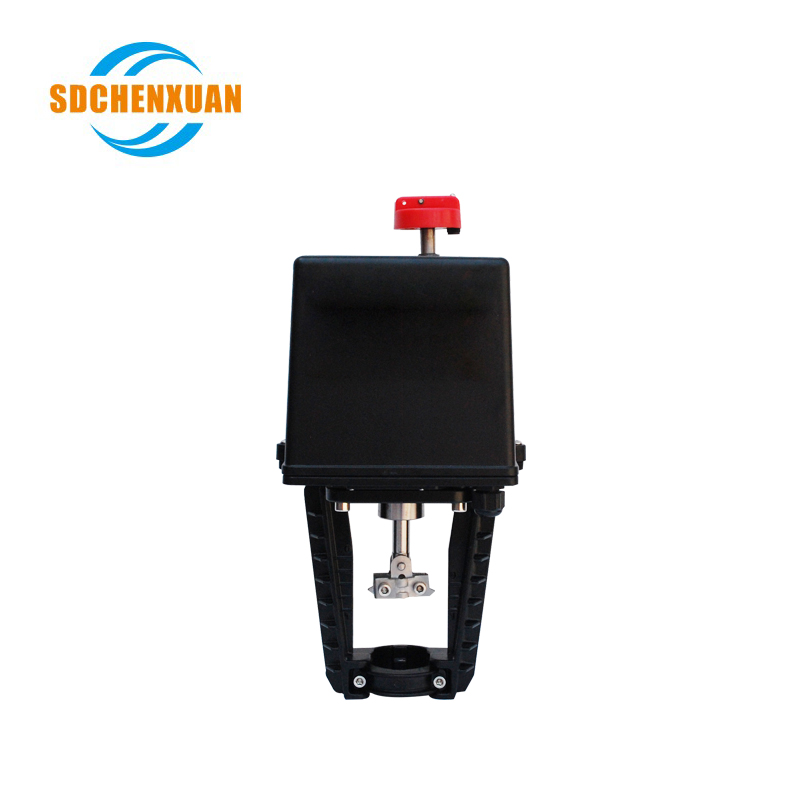

CX4000N Electric mechanical actuator 4000 N for valves with 40 mm stroke
Stock no. BPZ: CX4000N
Overload-proof through travel-dependent, electronic switching off in end position. With die-cast aluminium housing and yoke for valves with 40 mm stroke. Optional function with one auxiliary switch. With manual control.
|
Attribute |
Value |
|
Positioning signal |
DC 0...10, DC 4...20, 0...1000 V |
|
Positioning force |
4000 N |
|
Stroke |
40 mm |
|
Spring return function |
|
|
Position feedback |
DC 0...10, DC 4...20 V |
|
Degree of protection |
IP54 |
|
Medium temperature |
-25…150 °C |
|
Ambient temperature, operation |
-15...50 °C |
|
Mounting position |
Upright to horizontal |
Product Variants
CX4000N -N24 - Electrohydraulic actuator, 4000N, 40 mm, AC 24 V, DC 0...10 V/4...20 mA,
CX4000N -RS - Electrohydraulic actuator, 4000N, 40 mm, AC 24 V, RS485
CX4000N -M220 - Electrohydraulic actuator, 4000N, 40mm, AC 230 V, 3P
CX4000N -M24 - Electrohydraulic actuator, 4000N, 40 mm, AC 24 V, , 3 P

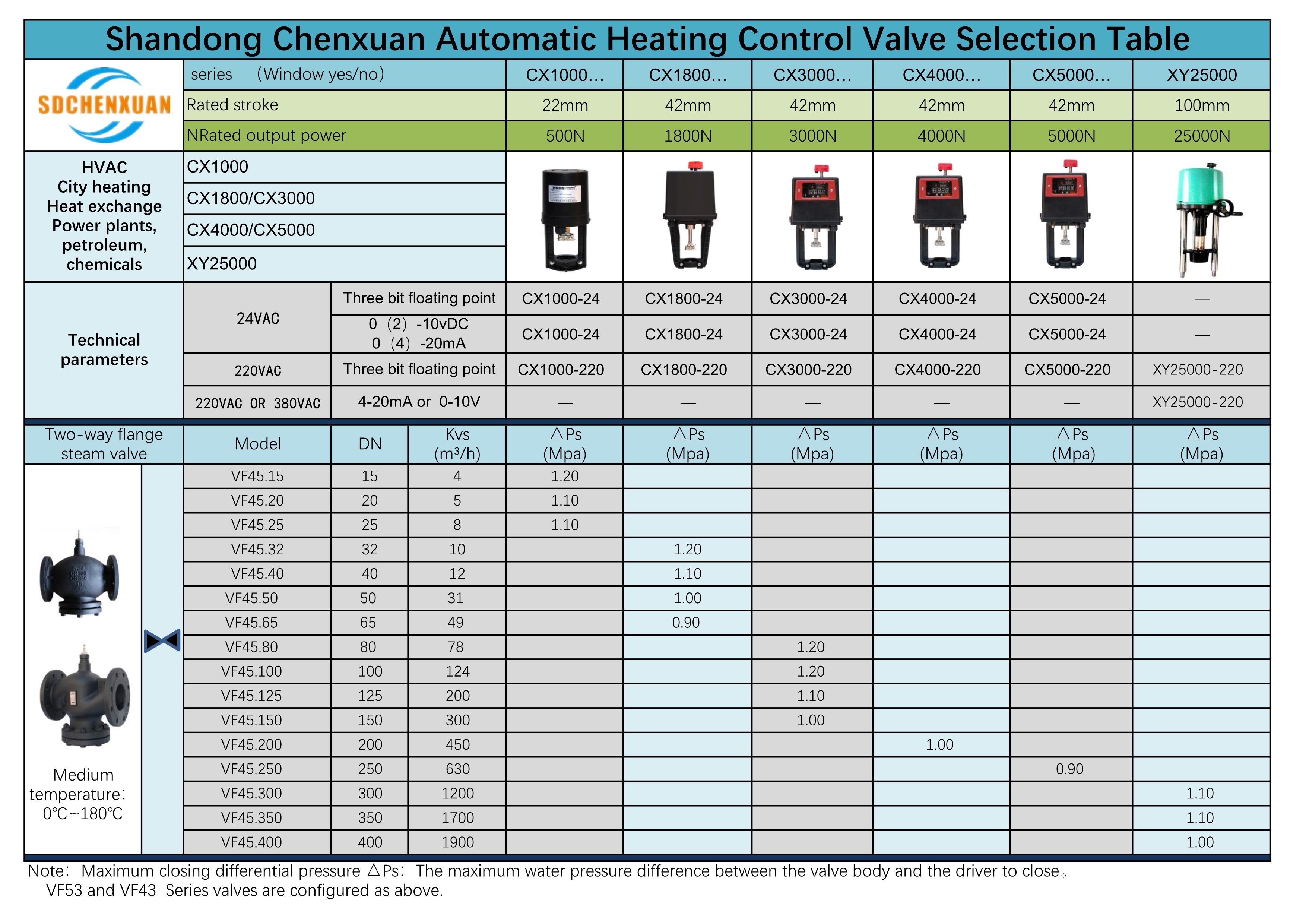

| Gray iron | Ball milled cast iron | Cast steel | stainless steel | ||||
| 2-way | 3-way | 2-way | 3-way | 2-way | 3-way | 2-way | 3-way |
| VF45.15 | VS45.15 | VF53.15 | VS53.15 | VF61.15 | VS61.15 | ||
| VF45.20 | VS45.20 | VF533.20 | VS53.20 | VF613.20 | VS61.20 | ||
| VF45.25 | VS45.25 | VF53.25 | VS53.25 | VF61.25 | VS61.25 | ||
| VF45.32 | VS45.32 | VF53.32 | VS53.32 | VF61.32 | VS61.32 | ||
| VF40.40 | VS40.40 | VF45.40 | VS45.40 | VF53.40 | VS53.40 | VF61.40 | VS61.40 |
| VF40.50 | VS40.50 | VF45.50 | VS45.50 | VF53.50 | VS53.50 | VF61.50 | VS61.50 |
| VF40.65 | VS40.65 | VF45.65 | VS45.65 | VF53.65 | VS53.65 | VF61.65 | VS61.65 |
| VF40.80 | VS40.80 | VF45.80 | VS45.80 | VF53.80 | VS53.80 | VF61.80 | VS61.80 |
| VF40.100 | VS40.100 | VF45.100 | VS45.100 | VF53.100 | VS53.100 | VF61.100 | VS61.100 |
| VF40.125 | VS40.125 | VF45.125 | VS45.125 | VF53.125 | VS53.125 | VF61.125 | VS61.125 |
| VF40.150 | VS40.150 | VF45.150 | VS45.150 | VF53.150 | VS53.150 | VF61.150 | VS61.150 |
| VF40.200 | VS40.200 | VF45.200 | VS45.200 | VF53.200 | VS53.200 | VF61.200 | VS61.200 |
| VF40.250 | VS40.250 | VF45.250 | VS45.250 | VF53.250 | VS53.250 | VF61.250 | VS61.250 |
| VF40.300 | VS40.300 | VF45.300 | VS45.300 | VF53.300 | VS53.300 | ||
| VF45.350 | VS45.350 | VF53.350 | VS53.350 | ||||
| VF45.400 | VS45.400 | VF53.400 | VS53.400 | ||||
