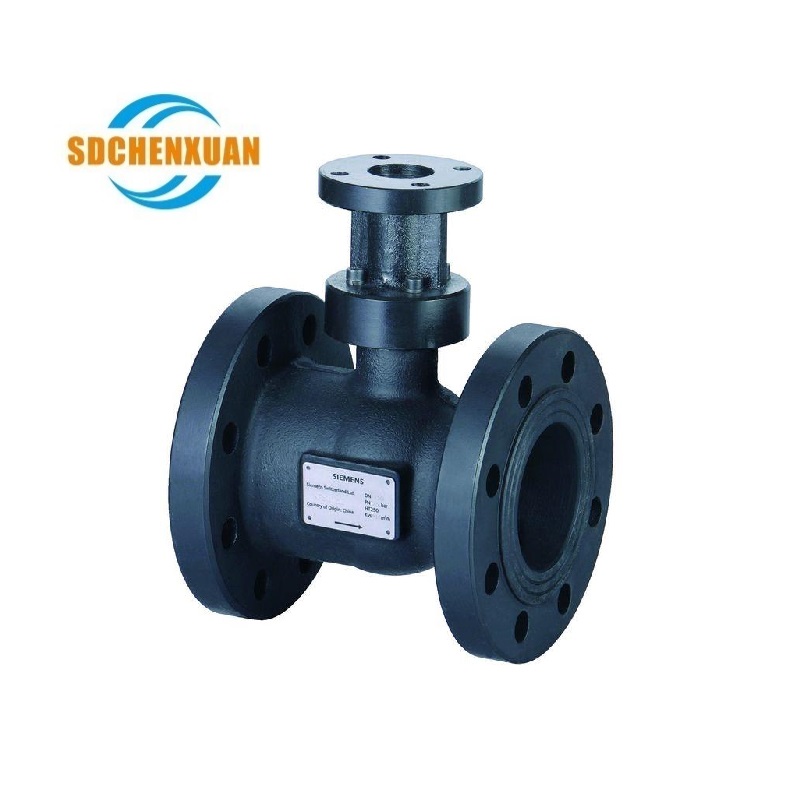

VAF41.. - 2-port contol ball valves for flanged connection
VAF41.. - 2-port contol ball valves for flanged connection
Ball valves for use in heating, cooling, ventilating and air conditioning systems as a control or shutoff valve.
Technical specifications
Angular rotation 90 °
Leakage rate 0...0.01 % of kvs value
Medium Water; Water with anti-freeze
Medium temperature 2...80 °C
Ambient temperature, operation -15…+55 °C
Rangeability ≥ 200
Permissible operating pressure 1600 kPa
Material, valve body EN-GJS-450-10
Material, inside set Stainless steel (SS304)
PN class PN 16
Data sheet A6V11168935

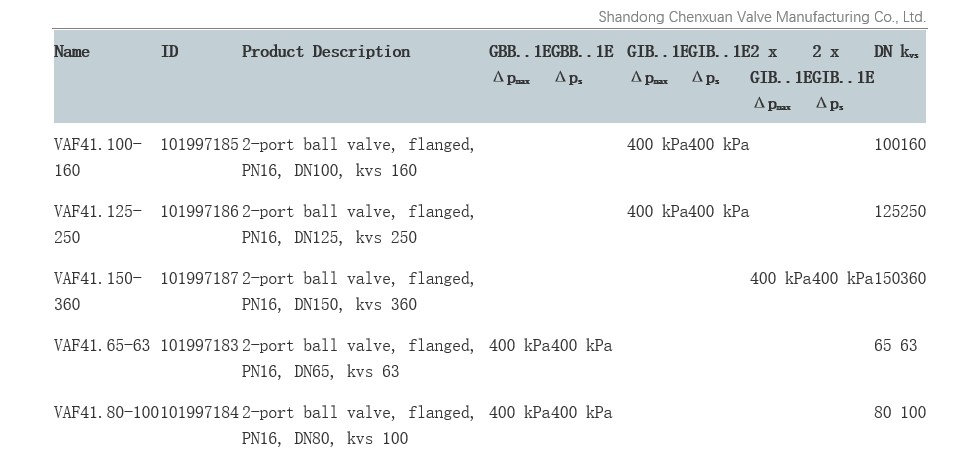

Overview
|
Name |
ID |
Product Description |
GBB..1E |
GBB..1E |
GIB..1E |
GIB..1E |
2 x GIB..1E |
2 x GIB..1E |
DN |
kvs |
|
VAF41.100-160 |
101997185 |
2-port ball valve, flanged, PN16, DN100, kvs 160 |
|
|
400 kPa |
400 kPa |
|
|
100 |
160 |
|
VAF41.125-250 |
101997186 |
2-port ball valve, flanged, PN16, DN125, kvs 250 |
|
|
400 kPa |
400 kPa |
|
|
125 |
250 |
|
VAF41.150-360 |
101997187 |
2-port ball valve, flanged, PN16, DN150, kvs 360 |
|
|
|
|
400 kPa |
400 kPa |
150 |
360 |
|
VAF41.65-63 |
101997183 |
2-port ball valve, flanged, PN16, DN65, kvs 63 |
400 kPa |
400 kPa |
|
|
|
|
65 |
63 |
|
VAF41.80-100 |
101997184 |
2-port ball valve, flanged, PN16, DN80, kvs 100 |
400 kPa |
400 kPa |
|
|
|
|
80 |
100 |
