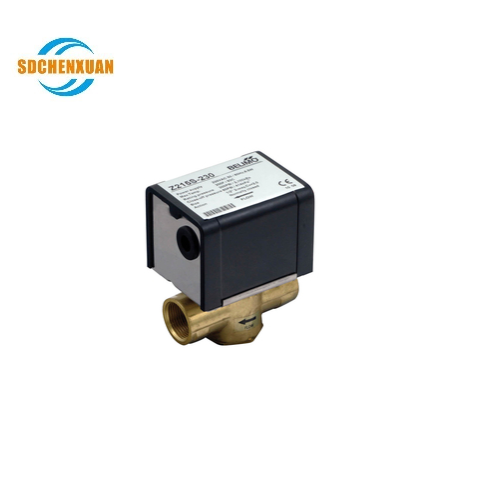

Z220S-230

Fan Coil Unit (FCU), 3/4", 2-way, Internal thread, kvs 2.2 m³/h

Z220S-230
Fan Coil Unit (FCU), 3/4", 2-way, Internal thread, kvs 2.2 m³/h

Specifications

Close-off pressure 344 kPa

Fluid Cold and hot water, water with max. 50% volume of glycol

kvs 2.2 m³/h

Pattern 2-way

Pipe connection Internal thread

PN 20

Pressure-independent NO

Control type Open/close

Electrical connection Cable

Fail-safe function Fail-safe

Power consumption (running) 6.5 W

Running time (motor) 13...18 s

Torque 0.5 Nm

Voltage AC/DC AC 230 V
