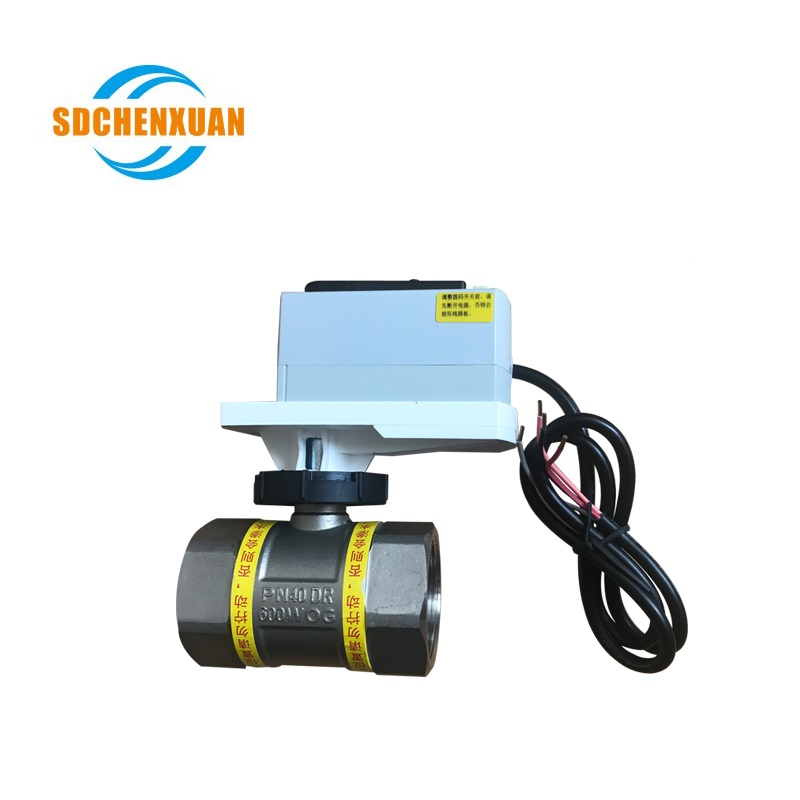

VG61 Electric ball valve
VG61 Electric ball valve
Product Highlights
※ Suitable for two / three-way threaded ball valves from DN20 to DN50;
※ Hysteresis clutch motor and locked rotor will not burn the motor;
※ Manual adjustment function;
※ Analog-adjusted (DC 0-10 V) or three-position control ball valve is suitable for the angular stroke actuator of valve BS878 series ball valve;
※ Working voltage: AC 24V;
※ Positioning signal: three-digit floating point, with 0.9m long wire.
|
Image |
Actuator |
||||||
|
|
control signal |
3 位 AC 24V |
GD31.9E |
GL31.9E |
|||
|
0-10V AC 24V |
GD61.9E |
GL61.9E |
|||||
|
Full travel time |
150s |
150s |
|||||
|
Nominal angle / Maximum angle |
90 °/95°±2° |
90 °/95°±2° |
|||||
|
90 ° corner running time |
90s |
150s （50Hz）125s（60Hz） |
|||||
|
Torque value |
5Nm |
10Nm |
|||||
|
Spring return function |
no |
no |
|||||
|
Wiring cable |
0.9m |
0.9m |
|||||
|
Valve model |
DN(mm ） |
Rp （inch) |
KVS(M ³/h） |
△Ps(kpa) |
△Pmax（kpa） |
△Ps(kpa) |
△Pmax（kpa） |
|
2-way |
1400 |
350 |
|
|
|||
|
VG61.20-2 |
DN20 |
Rp ¾ |
4 |
1400 |
350 |
|
|
|
VG61.20-2 |
DN20 |
Rp ¾ |
6.3 |
1400 |
350 |
|
|
|
VG61.20-2 |
DN25 |
Rp ¾ |
10 |
1400 |
350 |
|
|
|
VG61.25-2 |
DN25 |
Rp1 |
6.3 |
1400 |
350 |
|
|
|
VG61.25-2 |
DN25 |
Rp1 |
10 |
1400 |
350 |
|
|
|
VG61.25-2 |
DN25 |
Rp1 |
16 |
|
|
|
|
|
VG61.32-2 |
DN32 |
Rp1 ¼ |
10 |
|
|
1000 |
350 |
|
VG61.32-2 |
DN32 |
Rp1 ¼ |
16 |
|
|
1000 |
240 |
|
VG61.32-2 |
DN32 |
Rp1 ¼ |
25 |
|
|
1000 |
240 |
|
VG61.40-2 |
DN40 |
Rp1 ½ |
16 |
|
|
800 |
350 |
|
VG61.40-2 |
DN40 |
Rp1 ½ |
25 |
|
|
800 |
240 |
|
VG61.40-2 |
DN40 |
Rp1 ½ |
40 |
|
|
800 |
240 |
|
VG61.50-2 |
DN50 |
Rp2 |
25 |
|
|
600 |
350 |
|
VG61.50-2 |
DN50 |
Rp2 |
40 |
|
|
600 |
240 |
|
VG61.50-2 |
DN50 |
Rp2 |
63 |
|
|
600 |
240 |
