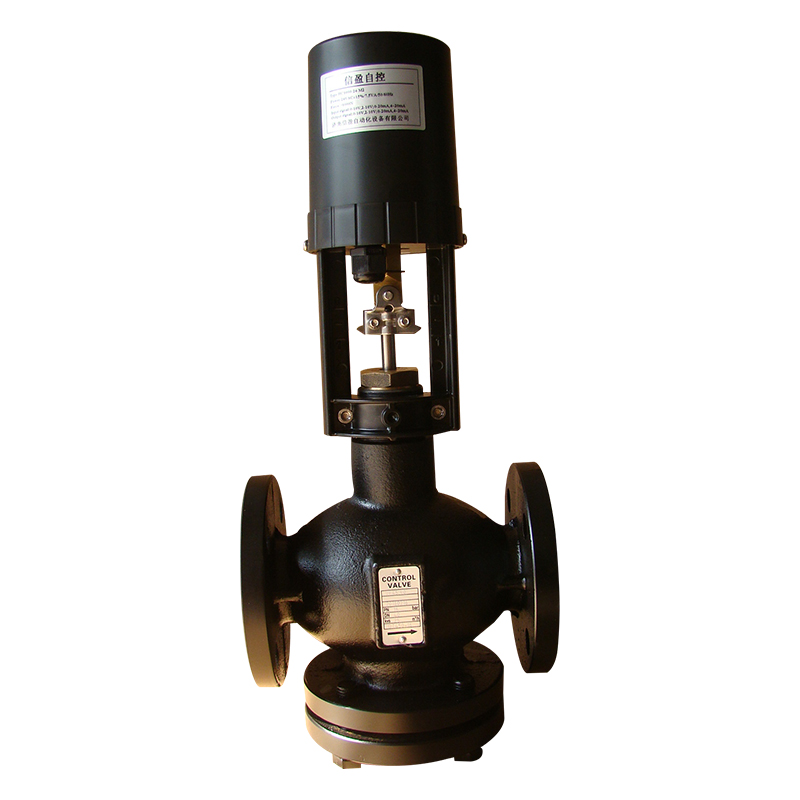

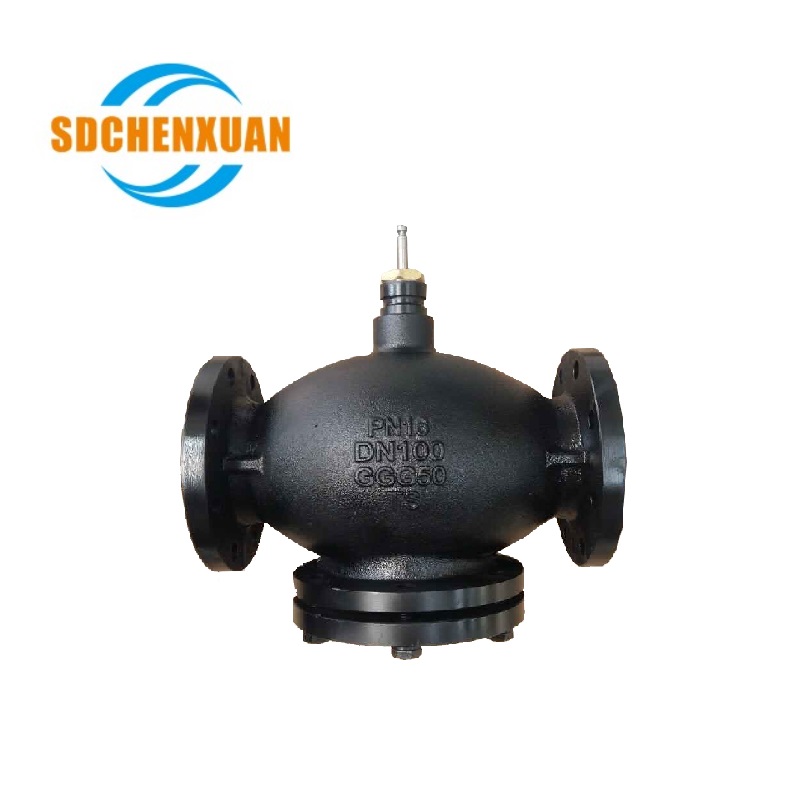

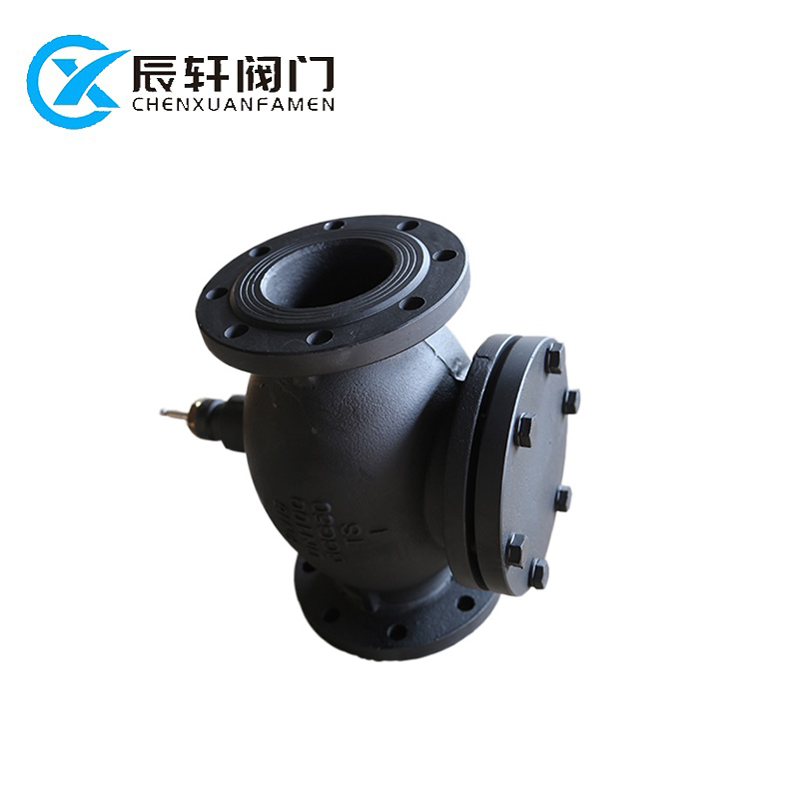

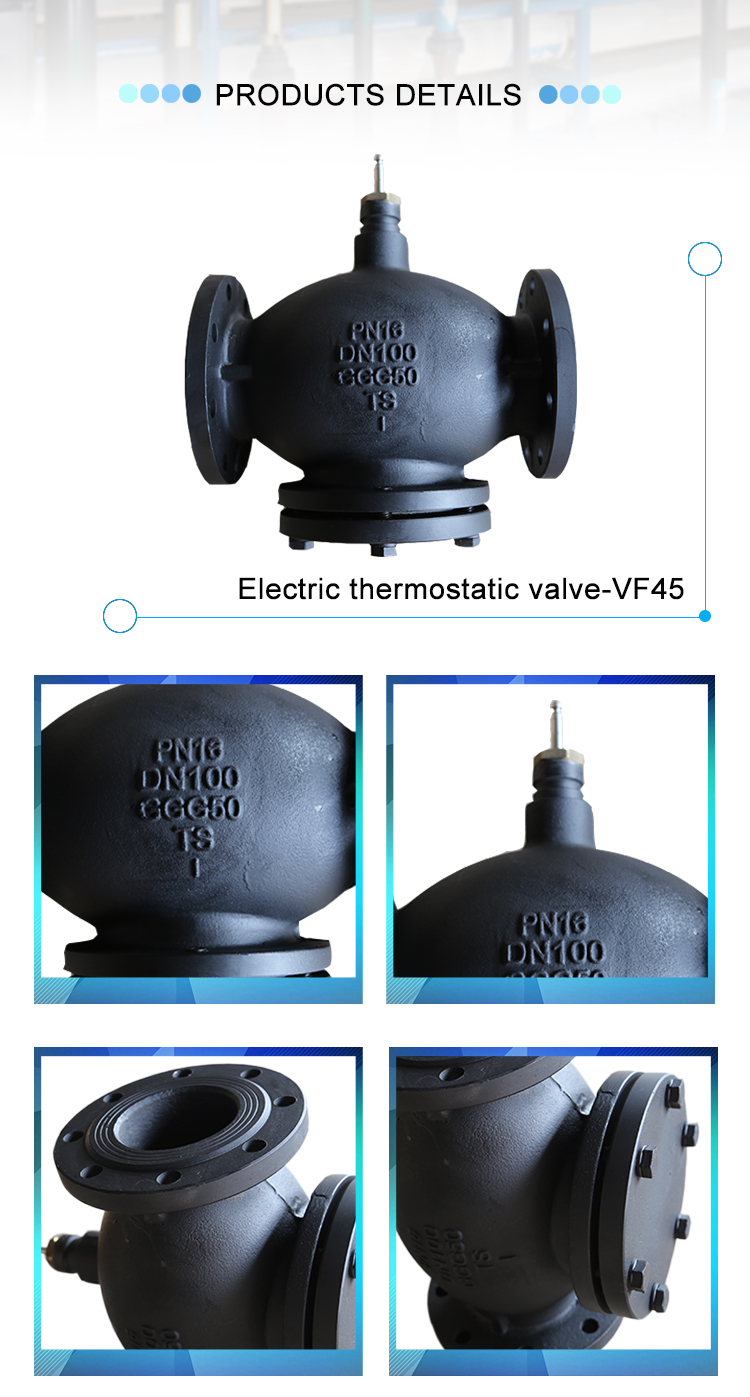

VF45 series electric regulating valve

Product features ：

Precision casting (resin sand) nodular cast iron GGG-50

The valve body adopts the pressure balance type, which guarantees the high clearance ability under the low pressure, and the switching free ability under the high pressure difference

Maximum allowable differential pressure is 1000kpa
The stem seal uses special sealing process
The full metal joint seat increases the value of the life of the valve
The product meets GB/T17213-2015 flange connection standard

the body uses iron coated sand casting process compared with the traditional technology, there is no swelling phenomenon, body wall thickness, no pores, trachoma material of high density, more exquisite appearance The valve body and stainless steel valve port in the casting process once molding, the valve port will not have deformation phenomenon, long time high temperature use will not exist outside the valve leakage phenomenon, to ensure that the valve port factory pressure test 0 leakage. The sealing ring is made of PTFE+ carbon fiber material, which has better wear resistance The paint paint line and drying equipment make the paint adhesion stronger, the anti-corrosion effect is better, the valve body gloss has been significantly improved.

Order description ：

Diameter	Inch	Model	Kv value （ m ³ /h ）	Optional actuator
Diameter	Inch	Model	Kv value （ m ³ /h ）	CX1000	CX1800	CX3000	CX5000
DN25	1	VF45.25	12	●	○	○	○
DN32	1¼	VF45.32	12	●	○	○	○
DN40	1½	VF45.40	25	○	●	○	○
DN50	2	VF45.50	40	○	●	○	○
DN65	2½	VF45.65	63	○	●	○	○
DN80	3	VF45.80	100	○	●	○	○
DN100	4	VF45.100	160	○	●	○	○
DN125	5	VF45.125	200	○	○	●	○
DN150	6	VF45.150	315	○	○	●	○
DN200	8	VF45.200	450	○	○	●	○
DN250	10	VF45.250	630	○	○	○	●
DN300	12	VF45.300	800	○	○	○	●

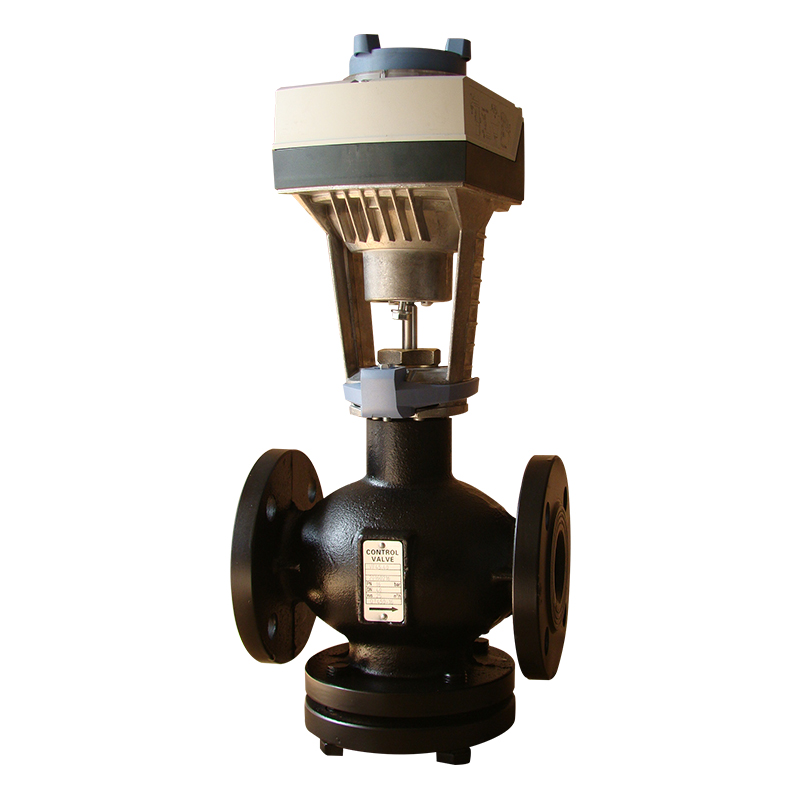

It c an be installed with Siemens SAX, SKD, SKB, SKC series executor.

Diameter	Inch	Model	Kv value （ m ³ /h ）	Optional actuator
Diameter	Inch	Model	Kv value （ m ³ /h ）	SAX	SKD	SKB	SKC
DN25	1	VF45.25	12	●	●	●	○
DN32	1¼	VF45.32	12	●	●	●	○
DN40	1½	VF45.40	25	●	●	●	○
DN50	2	VF45.50	40	●	●	●	○
DN65	2½	VF45.65	63	●	●	●	○
DN80	3	VF45.80	100	●	●	●	○
DN100	4	VF45.100	160	●	●	●	○
DN125	5	VF45.125	200	○	○	○	●
DN150	6	VF45.150	315	○	○	○	●
DN200	8	VF45.200	450	○	○	○	●
DN250	10	VF45.250	630	○	○	○	●
DN300	12	VF45.300	800	○	○	○	●
