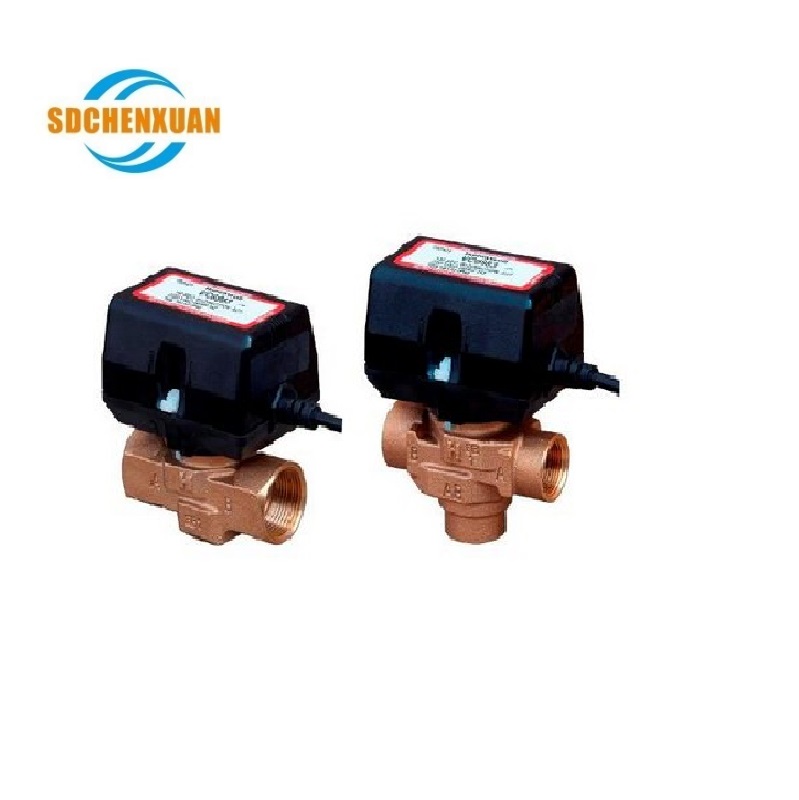

VC6983AJ1111T 3/4 inch, 2 Way, floating 230Vac, BSPP
Specifications Supply
Voltage 230Vac, 50/60Hz
Label color code Red
Power Consumption Max. 4Watts (during valve position change)
Maximum duty cycle 15%
Nominal Timing opens in 130 sec. @ 60 Hz
Actual full stroke timing is 150
sec
Note:
Timing is approximately 20% longer @ 50 Hz
Electrical Termination With integral 1 meter leadwire cable
Temperature
Ambient Operating 0 to 65 ℃ (32 to 150 ˚F)
Ambient Storage -40 to +65 ℃ (-40 to 150 ˚F )
Atmosphere Non-corrosive, Non-explosive Non-condensing
Fluid temperatures 1 to 95 ℃ (34 to 203˚F)
Pressure Differential Max. 4 bar (60 psi)
Pressure Rating Static: 20 bar (300 psi) Burst: 100 bar (1500 psi)
Valve Material Body Bronze Cartridge RytonTM and NorylTM O-ring seal EPDM rubber Stem Stainless steel Stem Travel 10 mm (0.4 inches) Flow Characteristics Linear Accessories and Replacement Parts: 40007029-002: Wrench for removing VC cartridge 50033261-001: 2-way characterized cartridge 50033262-001: 3-way characterized cartridge
