VC6013APC1000T 2-WAY DN25 BSPP
VC6013

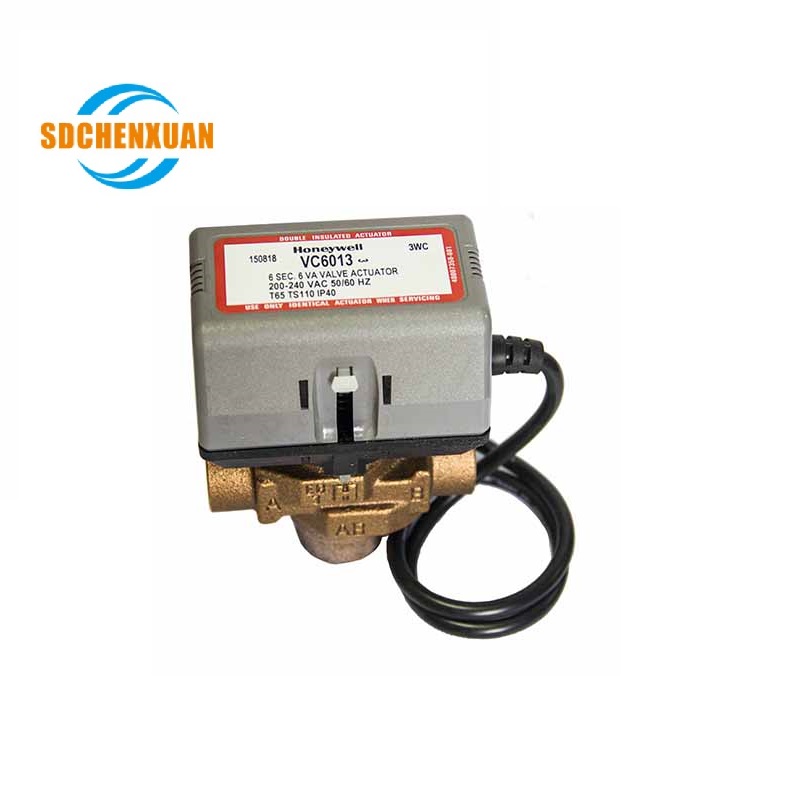

Honeywell actuator for VC series zone valves or single room controllers of hot and/or cold water. The valves and the actuator can be combined as required.Honeywell VC6013 spare actuator
Technical data:- 230 V, 50 Hz- EPU : single-pole change-over- protection Type: IP40- running-time: 6 seconds
Color : Multi Color
Compatible With : Air Conditioners & Coolers
Honeywell actuator for VC series zone valves or single room controllers of hot and/or cold water. The valves and the actuator can be combined as required.
Honeywell VC6013 spare actuator
Technical data:- 230 V, 50 Hz
- EPU : single-pole change-over
- protection Type: IP40
- running-time: 6 seconds
| Caliber | size | 2/3 WAY | MODE | Connection Type |
| DN20 | 3/4" | 2-way | VC6013AJC1000T | BSPP |
| DN25 | 1" | 2-way | VC6013APC1000T | BSPP |
| DN15 | ½" | 3-way | VC6013ME6000T | BSPP |
| DN20 | 3/4" | 3-way | VC6013MH6000T | BSPP |
| DN25 | 1" | 3-way | VC6013MP6000T | BSPP |
| DN20 | 3/4" | 2-way | VC4013AJC1000T | BSPP |
| DN15 | ½" | 3-way | VC4013ME6000T | BSPP |
| DN20 | 3/4" | 3-way | VC4013MH6000T | BSPP |
| DN25 | 1" | 3-way | VC4013MP6000T | BSPP |
Honeywell actuator for VC series zone valves or single room controllers of hot and/or cold water. The valves and the actuator can be combined as required. Honeywell VC6013 spare actuator
Rugged design Control by a low or line voltage SPST or SPDT controller Minimal actuator power consumption
Pressure differential up to 4 bar Double insulated actuator Quick connect electrical connections
Quick and easy replacement of moving parts Actuator head installation does not require draining of the system High flow rate capacity
Design VC Series zone valves consist of 2-way or 3-way valve housing available with various connection ends also Spindle and cartridge assembly Actuator with cable or Molex socket Pipe fittings (most versions) Materials Valve housing made of bronze Spindle made of stainless steel Cartridge made of Ryton (polyphenylene sulphide) and Noryl (polyphenylene oxide) O-ring seals made of EPDM rubber Actuator cover made of Noryl (94V-0) Actuator base made of Ryton (94V-0)
Product Description
The VC series 2--position hydronic valves are used in domestic and small commercial applications to control the flow of hot and/or cold water. They consist of an actuator, valve and a cartridge assembly. 2--way valves are designed for ON--OFF ”zone” control of domestic systems. 3--way valves can be piped for either diverting or mixing valve applications in domestic central heating and/or cooling systems. Both versions can be used to control individual fan coil, baseboard radiator or convector applications. Depending on the model selected they can be controlled by a low or line voltage SPST or SPDT controller, such as a room thermostat, aquastat or flow switch.
