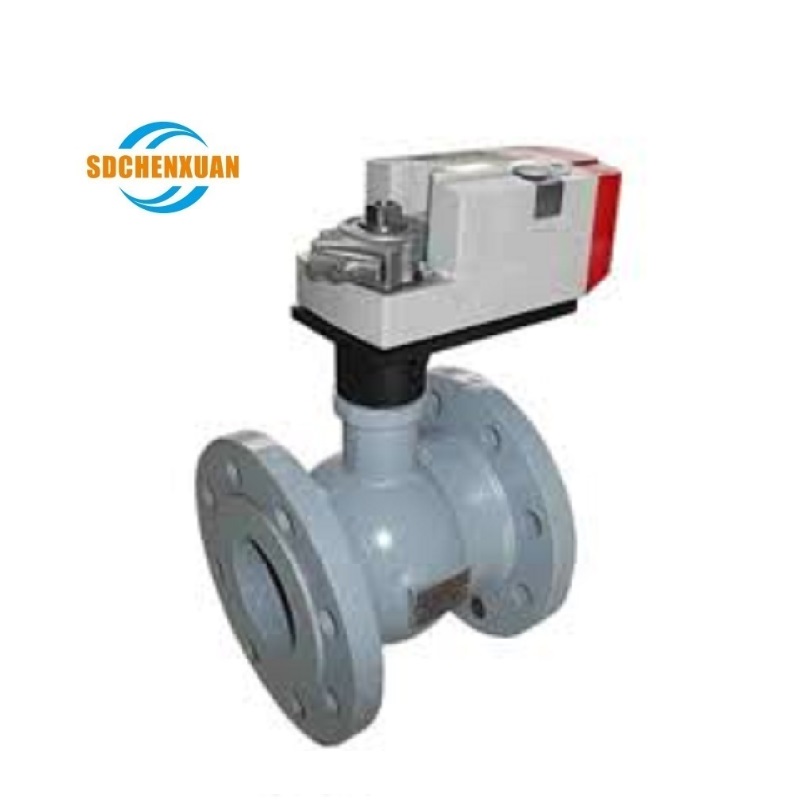

VBA16F Flange Type Two Way Control Ball Valve
VBA16F Flange Type Two Way Control Ball Valve
General
The VBA16P-series of two-way control ball valves can be used in the HVAC water systems of commercial and public buildings to achieve modulating or On/Off control.
Features
Equal percentage flow Characteristic.
V Shaped Ball.
Low leakage rate.
Low driving torque.
Stainless steel ball and stem.
High flow capacity.
Specifications
Model Number: VBA16F
Size: DN65-DN150
Nominal pressure: PN16
Flow characteristics: Equal percentage
Rangeability: 50:1
Leakage rate: 0.01% Kvs of (ANSI/FCI 702 Class IV)
Flange connection: ISO70052
Medium: Hot and cold water or neutral liquid
Medium temperature: ¬5…120°C
Body Material: Ductile iron QT450-10
Seat Material: PTFE
Ball and Stem Material: Stainless Steel
Required Actuator torque: 20 Nm
Actuator Model Number: MVN4620 / MVN7220
| Vertical Market | Item Code | Item Description |
| COMM WATER | VBA16F065 | Ball Valve, 2 way, DN65, Flange connection |
| COMM WATER | VBA16F080 | Ball Valve, 2 way, DN80, Flange connection |
| COMM WATER | VBA16F100 | Ball Valve, 2 way, DN100, Flange connection |
| COMM WATER | VBA16F125 | Ball Valve, 2 way, DN125, Flange connection |
| COMM WATER | VBA16F150 | Ball Valve, 2 way, DN150, Flange connection |
