UEC24014M262
HONEYWELL

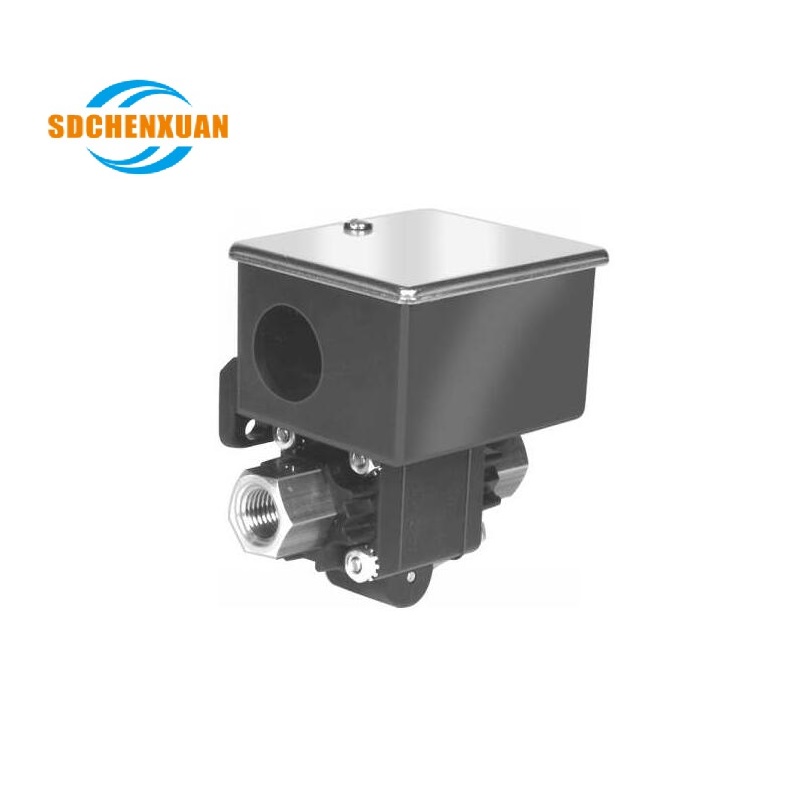

Differential Pressure Switches
UEC
open or close a switch contact in response to a change in the pressure rise across a pump or filter.
DESCRIPTION
FEATURES
• NEMA Enclosures
• UL and CSA Listed
• Gold Clad Contacts
• Brass Pipe Connection
• Pipe or Surface Mount
SPECIFICATIONS
Burst Pressure : 300 psi (2068 kPa)
Set Point Repeatability : Typical –1% of span
Maximum Pressure at Either Port : 150 psi (1034 kPa)
Differential Pressure Setpoint (Adjustable) : 4 to 43.5 psi (28 to 300 kPa) on decreasing pressure, 5.5 to 45 psi (38 to 310 kPa) on increasing pressure
Switch Contact Arrangement : SPDT
Operating Temperature : 30 to 160F (-1.1 to 71.1C)
Maximum Media Temperature : 200F (93C) at 100 psi (689 kPa)
Gold clad silver contacts : 1mA at 24 Vdc
