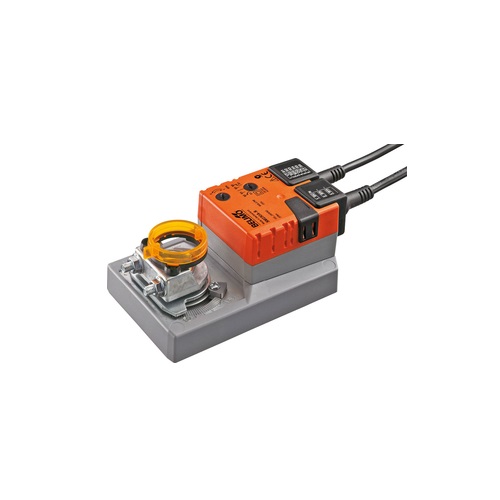

SM230A-S Rotary actuator, 20 Nm, AC 100...240 V, Open/close, 3-point, 150 s, 1x SPDT, IP54

Voltage AC/DC AC 100...240 V

Power consumption (running) 2.5 W

Power consumption (holding) 0.6 W

Power Consumption For Wire Sizing 6 VA

Auxiliary switches 1x SPDT

Connection Supply Control Cable 1 m, 3x 0.75 mm²

Connection Auxilary Switch Cable 1 m, 3x 0.75 mm²

Torque 20 Nm

Control type Open/close

3-point

Direction Of Motion Motor selectable with switch 0 (ccw rotation) / 1 (cw rotation)

Manual override With push-button, can be locked

Angle of rotation 95

Running time (motor) 150 s / 90°

Mechanical interface Universal shaft clamp reversible 10...20 mm

Protection category IP54

Degree Of Protection NEMA NEMA 2

Enclosure Type UL Enclosure Type 2

Ambient Temperature -30...50°C [-22...122°F]
