SKD62/MO Modbus RTU

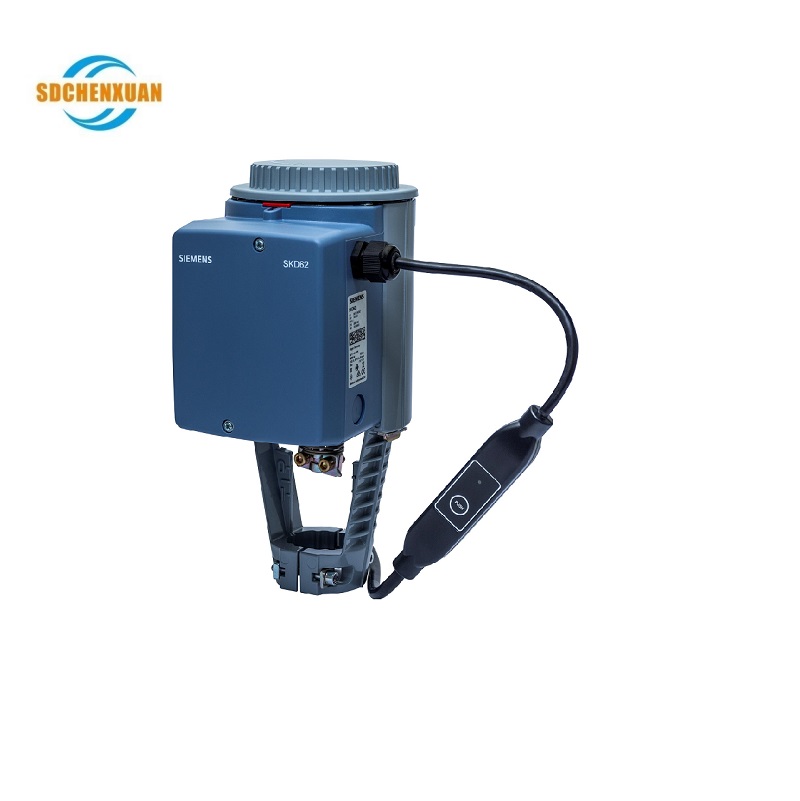

SKD62/MO Electrohydraulic actuators 1000 N for valves with 20 mm stroke, Modbus RTU
Overload-proof through travel-dependent, electronic switching off in end position. With die-cast aluminium housing and yoke for valves with 20 mm stroke. Optional function with one auxiliary switch. With manual control.
Additional info
SKD..U, SKD..UA are UL listed. Control devices MK..5.. are control devices with safety shut-off function per DIN EN 14597.
Technical Specifications
Operating voltage AC 24 V
Positioning signal Modbus RTU
Power consumption 14 VA
Positioning force 1000 N
Positioning time Open 30 s, Close 15 s
Stroke 20 mm
Spring return function Yes
Position feedback Modbus RTU
Degree of protection IP54
Medium temperature -25…150 °C
Ambient temperature, operation -15…50 °C
Mounting position Upright to horizontal
Dimensions (W x H x D) 127 x 300 x 169 mm
