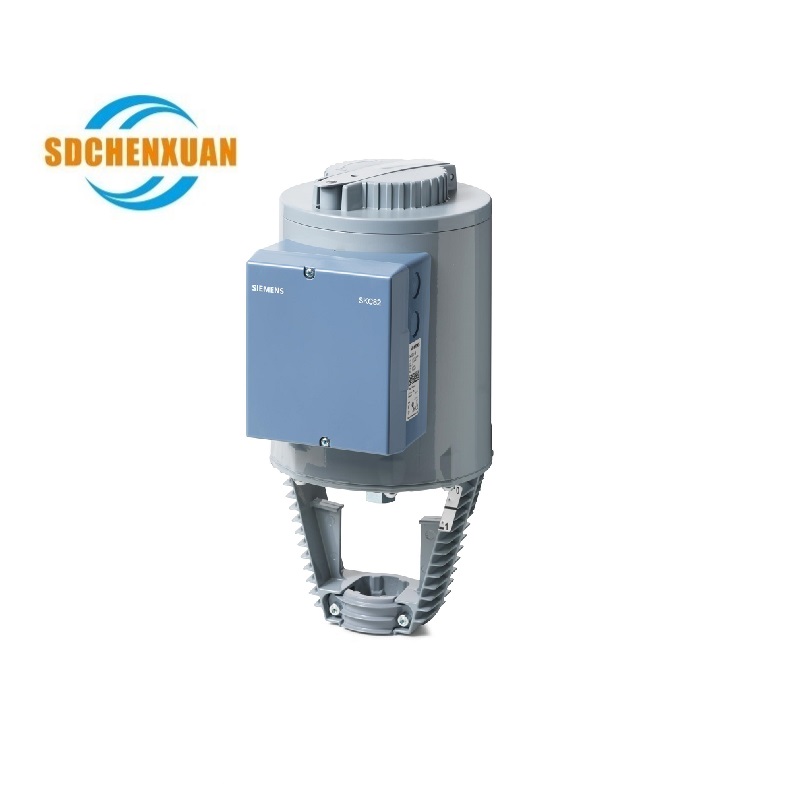

SKC32.61 Electrohydraulic Actuator
SKC32/SKC82 Electrohydraulic actuators 2800 N for valves with 40 mm stroke
Stock no. BPZ:SKC32../SKC82..
Overload-proof through travel-dependent, fixed switching off in end position. With die-cast aluminium housing and yoke for valves with 40 mm stroke. Optional functions: one auxiliary switch or one potentiometer. With manual control.
Additional info
SKC..U are UL listed. Control devices MK..6.. are control devices with safety shut-off function per DIN EN 14597.
|
Attribute |
Value |
|
Positioning signal |
3-position |
|
Positioning force |
2800 N |
|
Stroke |
40 mm |
|
Spring return function |
SKC32.61, SKC82.61 |
|
Degree of protection |
IP54 |
|
Medium temperature |
-25…220 °C (350 °C) |
|
Ambient temperature, operation |
-15...55 °C |
|
Mounting position |
Upright to horizontal |
Product Variants
SKC32.60 - Electrohydraulic actuator, 2800 N, 40 mm, AC 230 V, 3P
SKC32.61 - Electrohydraulic actuator, 2800 N, 40 mm, AC 230 V, 3P, spring return
SKC82.60 - Electrohydraulic actuator, 2800 N, 40 mm, AC 24 V, 3P
SKC82.60U - Electrohydraulic actuator, 2800 N, 40 mm, AC 24 V, 3P, UL
SKC82.61 - Electrohydraulic actuator, 2800 N, 40 mm, AC 24 V, 3P, spring return
SKC82.61U - Electrohydraulic actuator, 2800 N, 40 mm, AC 24 V, 3P, spring return, UL
| Operating voltage | AC 230 V |
| Positioning signal | 3-position |
| Power consumption | 24 VA |
| Positioning time | 120 s |
| Positioning force | 2800 N |
| Stroke | 40 mm |
| Spring return function | Yes (18 s) |
| Degree of protection | IP54 |
| Medium temperature | -25…220 °C |
| Ambient temperature, operation | -15...<55 °C |
| Mounting position | Upright to horizontal |
