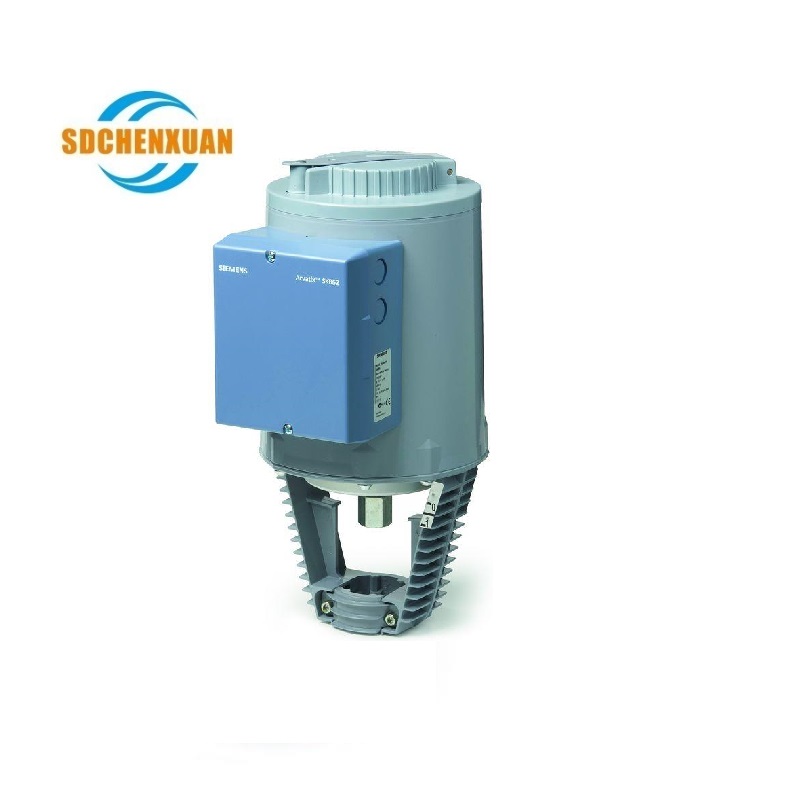

SKB62 Electrohydraulic Actuators
SKB60/62 Electrohydraulic actuators 2800 N for valves with 20 mm stroke
Overload-proof through travel-dependent, electronic switching off in end position. With die-cast aluminium housing and yoke for valves with 20 mm stroke. Optional function with one auxiliary switch. With manual control.
Additional info
SKB..U, SKB..UA are UL listed. Control devices MK..5.., MK..6.. or MK..5..G are control devices with safety shut-off function per DIN EN 14597.
|
Attribute |
Value |
|
Positioning signal |
DC 0...10, 4...20, 0...1000 V |
|
Positioning force |
2800 N |
|
Stroke |
20 mm |
|
Spring return function |
SKB62.. |
|
Position feedback |
DC 0...10, DC 4...20 V |
|
Degree of protection |
IP54 |
|
Medium temperature |
-25…220 °C (350 °C) |
|
Ambient temperature, operation |
-15...55 °C |
|
Mounting position |
Upright to horizontal |
Product Variants
SKB60 - Electrohydraulic actuator, 2800 N, 20 mm, AC 24 V, DC 0...10 V/4...20 mA
SKB62 - Electrohydraulic actuator, 2800 N, 20 mm, AC 24 V, DC 0...10 V/4...20 mA, spring return
SKB62UA - Electrohydraulic actuator, 2800 N, 20 mm, AC 24 V, DC 0...10 V/4...20 mA, spring return, UL
SKB62U - Electrohydraulic actuator, 2800 N, 20 mm, AC 24 V, DC 0...10 V/4...20 mA, spring return, UL
| Operating voltage | AC 24 V |
| Positioning signal | DC 0...10 V, 4...20 mA, 0...1000 Ohm |
| Positioning time | Open 120 s, Close 10 s |
| Stroke | 20 mm |
| Spring return function | Yes (10 s) |
| Position feedback | DC 0...10 V, DC 4...20 mA |
| Degree of protection | IP54 |
| Medium temperature | -25…220 °C |
| Ambient temperature, operation | -15...<55 °C |
| Mounting position | Upright to horizontal |
