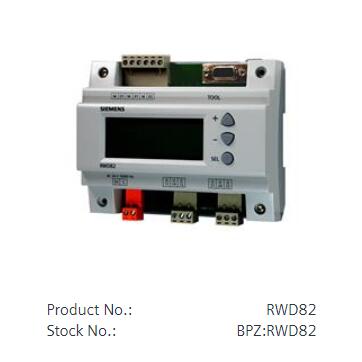

RWD82 Universal controller, AC 24 V, with 2 relay outputs
Universal controller with P or PI action for heating, ventilation and air conditioning.
RWD82 Universal controller, AC 24 V, with 2 relay outputs
Universal controller with P or PI action for heating, ventilation and air conditioning.
Auxiliary functions
PI limiter function (absolute and relative limit)
Remote setpoint
Setpoint compensation
Winter/summer mode changeover (analogue or digital input)
Cascade control
Maximum priority for cooling / dehumidifying
| Operating voltage | AC 24 V |
| Frequency | 50/60 Hz |
| Power consumption | 3.5 VA |
| Positioning signal | 2-position , 3-position |
| Digital inputs | Potential-free input signal |
| Universal inputs, number | 2 |
| Universal input, signal | LG-Ni1000 , DC 0...10 V, Pt1000 |
| Relay outputs, number | 2 |
| Relay outputs | Changeover contacts, potential-free |
| Relay output, switching voltage | AC 24…230 V, DC 5…30 V |
| Relay output, switching current | AC 0.02…3 (4) A, DC 0.1…4 A |
| Degree of protection | IP20 |
| Dimensions (W x H x D) | 130 x 114 x 57 mm |
