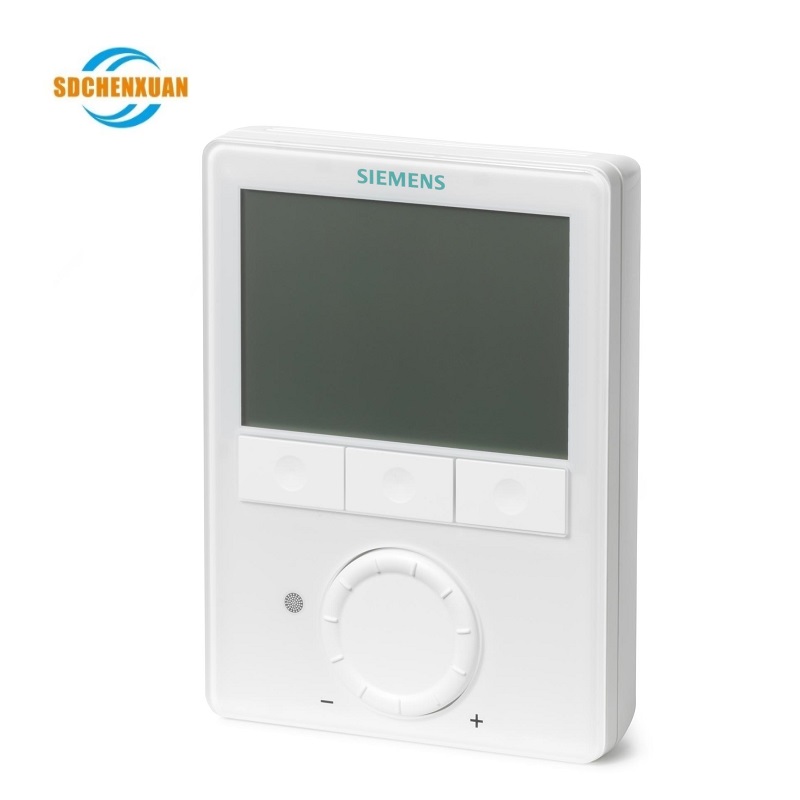

RDG160T Room thermostat AC24 V

RDG160T Room thermostat, AC 24 V, for fan coil units (3-speed or ECM fan), universal applications and heat pump applications. 7-day time switch. Outputs DC 0..10V or ON/OFF

Operating modes: Auto timer, Comfort, Energy Saving and Protection
Auto Timer mode with 8 programmable timers
2-position or DC 0...10V control outputs
ECM fan or 3-speed fan outputs
Automatic or manual fan speed
3 multifunctional inputs for keycard contact, external room / return air temperature (QAH11.1, QAA32), heat / cool changeover, operation mode changeover, window contact on/off, dewpoint monitor, electrical heater enabled, fault contact, supply air temperature sensor
Automatic or manual heating / cooling changeover
Adjustable commissioning and control parameters
Minimum and maximum setpoint limitation
Infrared remote control receiver
Backlit display
Auto timer can be disabled

Application selectable:
