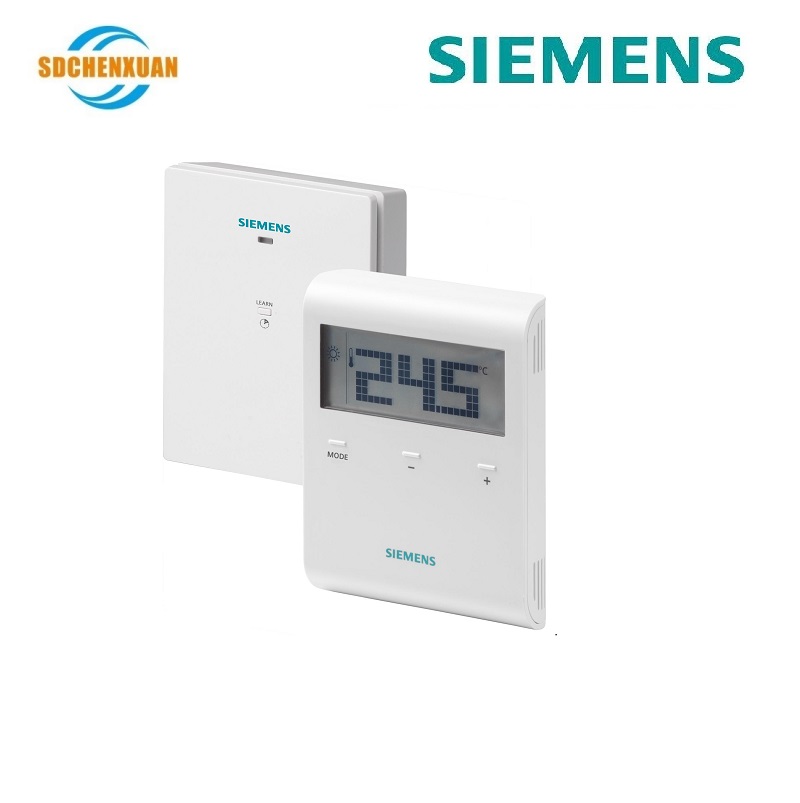

RDD100.1RFS Wireless room thermostat with LCD, incl. receiver



RDD100.1RFS Wireless room thermostat with LCD, incl. receiver

Battery-powered DC 3V thermostat with mains-powered AC 230 V receiver, no time switch

· Room temperature control
· Comfort, Economy and Protection mode
· 2-position control with On/Off control output
· Adjustable commissioning and control parameters
· Battery-powered room thermostat DC 3 V (RDD100.1RF)
· Mains-powered receiver AC 230 V (RCR100RF)
Use
The RDD100.1RFS is used to control the room temperature in heating systems.
Typical applications:
· Apartments
· Commercial spaces
· Schools
For the control of the following pieces of equipment:
· Thermal valves or zone valves
· Gas or oil boilers
· Fans
· Pumps

Functions
· Room temperature control via built-in temperature sensor
· Selection of operating mode with touchkey
· Display of current room temperature or setpoint in ° C or ° F
· Touchkey lock (manually)
· Setpoint lock
· Reloading factory settings for commissioning and control parameters
· Standalone wireless transmitter and receiver
· Wireless operating frequency 433 MHz



Technical Specifications

Operating voltage                         DC 3 V

Voltage supply                              Micro (2xAAA)

Power consumption                     14 VA on receiver

Setpoint setting range                5…35 °C

Switching differential                 1 K

Relay outputs                             Change-over contact , Potential-free

Relay outputs, number              1

Relay output, switching voltage                     AC 24…230 V

Relay output, switching current                     8 (2) A

Radio frequency                                             433 MHz

Type of fixing                                                 Wall mounting or desk stand for thermostat, Wall mounting for receiver

Degree of protection                                    IP30

Dimensions (W x H x D)                                106 x 85 x 21.7 mm
