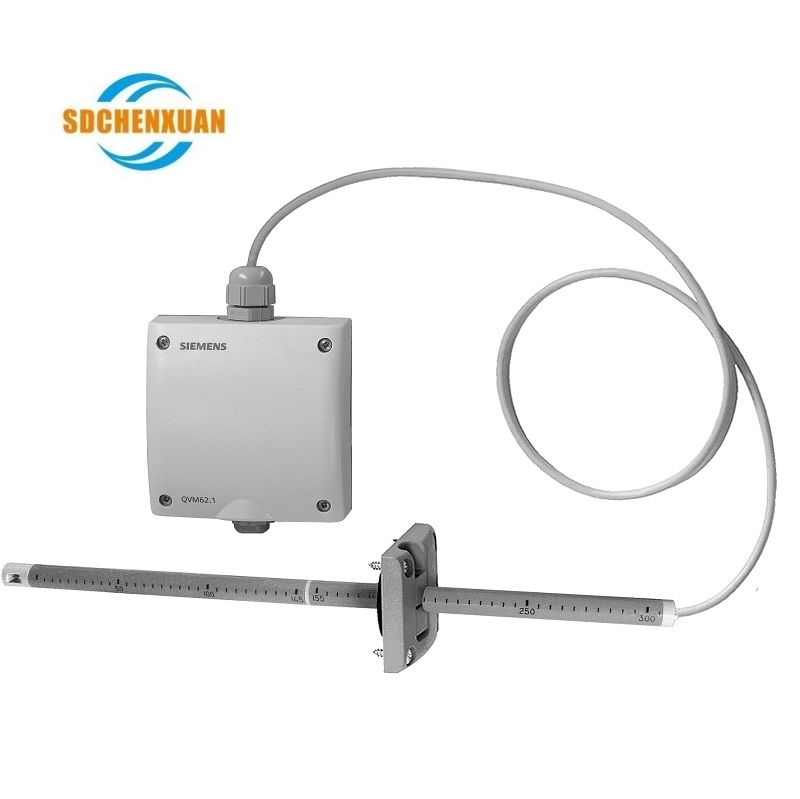

QVM62.1 Duct sensor for air velocity

For measuring air velocities or volumetric flow in air ducts. Suited for primary plant (presetting the volumetric flow).

Additional info

Sensor detached, ready wired, including pipe extension for different immersion lengths and mounting flange.

Technical Specifications

Operating voltage AC 24 V, DC 24 V

Power consumption 5 VA

Measuring range 0...10 m/s, 0...15 m/s, 0...5 m/s

Measurement accuracy At 20 °C, 45 % r.h., 1013 hPa: ±0.65 m/s

Connection, electrical Screw terminals

Cable length 1 m

Immersion length 30…300 mm

Analog output, signal DC 4...20 mA, DC 0...10 V

Degree of protection IP42

Dimensions (W x H x D) 86 x 43 x 117 mm
