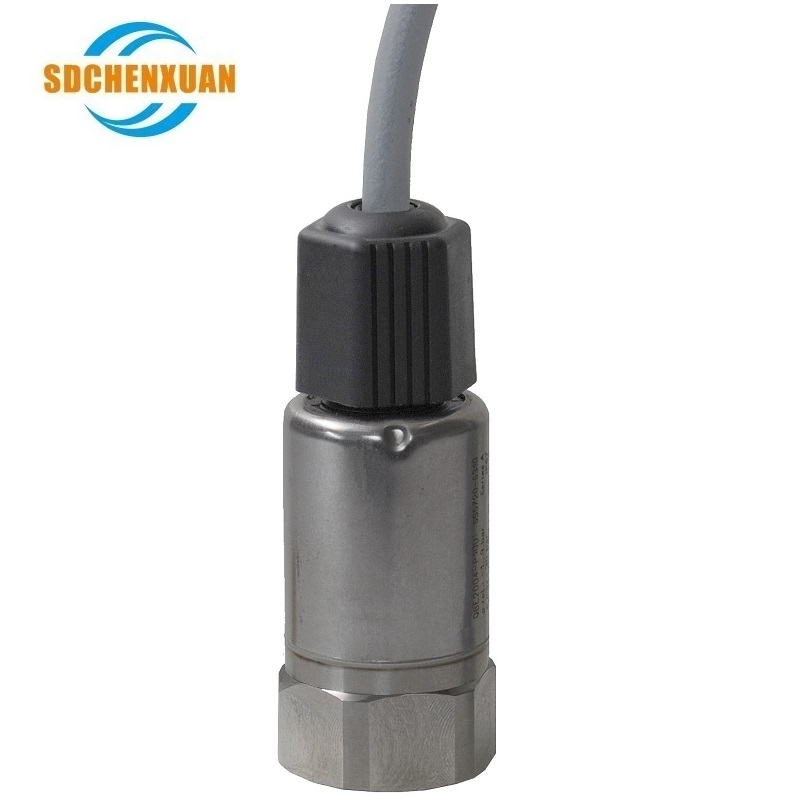

QBE2004-P10U Pressure sensor for refrigerants (0…10 V) -1…9 bar

With internally threaded pressure connection UNF7/16-20.

Additional info

For use with all media, including ammonia.

Technical Specifications

Analog output, signal DC 0...10 V

Operating voltage AC 24 V, DC 16...33 V

Current consumption <4 mA

Sensing element Piezo

Time constant <2 ms

Pressure connection Internal thread UNF7/16-20

Connection cable 3-wire

Cable length 1.5 m

Connection, electrical Cable

Medium temperature -40…135 °C

Max. permissible pressure 3 x scale end value (FS)

Mounting position Any

Measuring range, pressure -1…9 bar, -100…900 kPa

Degree of protection IP67

Dimensions (W x H x D) 24 x 24 x 68 mm

Dimensions (Ø x L) 24 x 68 mm
