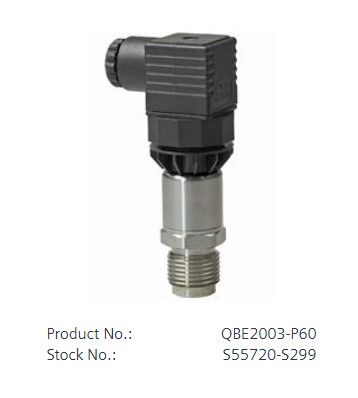

QBE2003-P60 Pressure sensor
QBE2003-P Pressure sensor for neutral and slightly aggressive liquids and gases (0…10 V)
Stock no. BPZ:QBE2003-P..
With threaded connection G½" and plug DIN EN175301-803A
Additional info
Suited for use with oil-containing media.
|
Attribute |
Value |
|
Operating voltage |
AC 24, DC 12...33 V |
|
Analog output, signal |
DC 0...10 V |
|
Time constant |
<2 ms (faulty format) |
|
Pressure conneciton |
External thread G½ " |
|
Connection, electrical |
Plug-in connection |
|
Medium temperature |
-15…125 °C |
|
Max. permissible pressure |
2.5 x scale end value (FS) |
|
Mounting position |
Any |
|
Degree of protection |
IP65 |
|
Dimension (Ø x L) |
24 x 101 mm |
Product Variants
QBE2003-P1 - Pressure sensor for neutral and slightly aggressive liquids and gases (0…10 V) 0…1 bar
QBE2003-P1.6 - Pressure sensor for neutral and slightly aggressive liquids and gases (0…10 V) 0…1.6 bar
QBE2003-P2.5 - Pressure sensor for neutral and slightly aggressive liquids and gases (0…10 V) 0…2.5 bar
QBE2003-P4 - Pressure sensor for neutral and slightly aggressive liquids and gases (0…10 V) 0…4 bar
QBE2003-P6 - Pressure sensor for neutral and slightly aggressive liquids and gases (0…10 V) 0…6 bar
QBE2003-P10 - Pressure sensor for neutral and slightly aggressive liquids and gases (0…10 V) 0…10 bar
QBE2003-P16 - Pressure sensor for neutral and slightly aggressive liquids and gases (0…10 V) 0…16 bar
QBE2003-P25 - Pressure sensor for neutral and slightly aggressive liquids and gases (0…10 V) 0…25 bar
QBE2003-P40 - Pressure sensor for neutral and slightly aggressive liquids and gases (0…10 V) 0…40 bar
QBE2003-P60 - Pressure sensor for neutral and slightly aggressive liquids and gases (0…10 V) 0…60 bar
