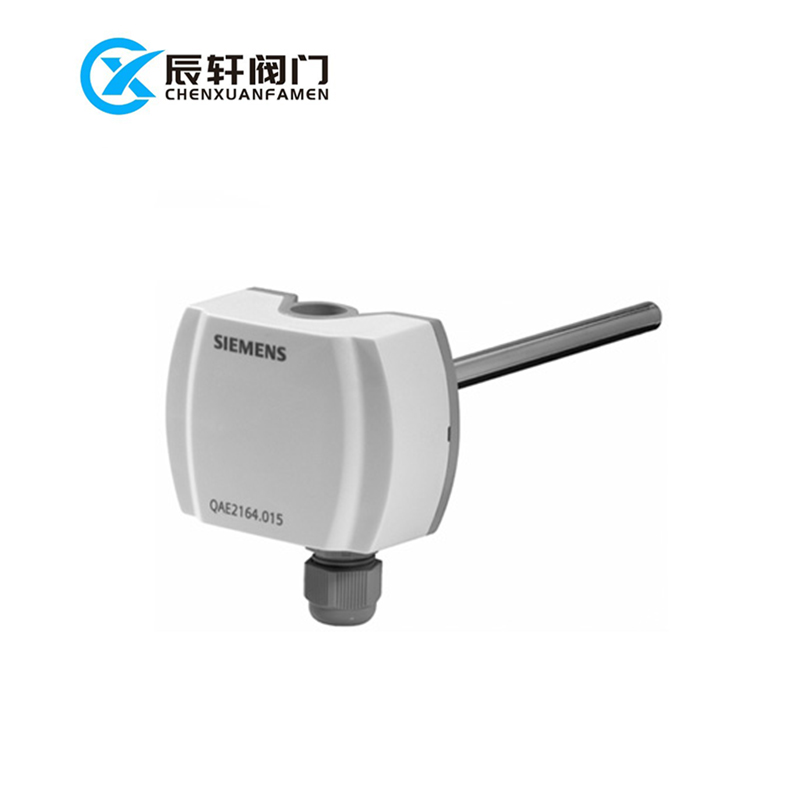

QAE2164.015 Immersion temperature sensor 150 mm DC 0...10 V
QAE2164.015 | 100325744
QAE2164.015 - Immersion temperature sensor 150 mm DC 0...10 V
| Product | ||
| Article Number (Market Facing Number) | QAE2164.015 | 100325744 | |
| Product Description | QAE2164.015 - Immersion temperature sensor 150 mm DC 0...10 V | |
| Product family | ||
| Product Lifecycle (PLM) | PM300:Active Product | |
| Price data | ||
| Price Group / Headquarter Price Group | U1 / U1 | |
| List Price (w/o VAT) | ||
| Customer Price | ||
| Metal Factor | None | |
| Delivery information | ||
| Export Control Regulations | AL : N / ECCN : N | |
| Factory Production Time | 1 Day/Days | |
| Net Weight (kg) | 0.168 Kg | |
| Product Dimensions (W x L x H) | Not available | |
| Packaging Dimension | 8.60 x 20.50 x 7.10 | |
| Package size unit of measure | CMT | |
| Quantity Unit | 1 Piece | |
| Packaging Quantity | 1 | |
| Additional Product Information | ||
| EAN | Not available | |
| UPC | Not available | |
| Commodity Code | 90251920000 | |
| LKZ_FDB/ CatalogID | BT_Catalog | |
| Product Group | QBE1 | |
| Country of origin | China | |
| Compliance with the substance restrictions according to RoHS directive | Since: 2015.09.08 | |
| Product class | Not available | |
| WEEE (2012/19/EU) Take-Back Obligation | Yes | |
| REACH Art. 33 Duty to inform according to the current list of candidates |
|
|
| Classifications | ||
| Not available | ||
QAE21 64 QAE2174 Immersion temperature sensor active
Stock no. BPZ:QAE21..4
Additional info
Fixing is made by protection pocket or compression fitting. No protection pocket is included as standard. The nominal pressure depends on the protection pocket used (see accessories). By using the compression fitting AQE2102 the nominal pressure is 16 bar (PN 16).
|
Attribute |
Value |
|
Power consumption |
≤ 1 VA |
|
Measuring range, temperature |
-10...120 °C |
|
Measurement accuracy |
At 0...70 °C: ±1, At -40...120 °C: ±1.4 K |
|
Time constant |
With protection pocket: 30 s |
|
Material, immersion pocket |
Stainless steel |
|
Connection, electrical |
Screw terminals |
|
Degree of protection |
IP54 |
|
Dimensions (W x H x D) |
80 x 88 x 39 mm |
Product Variants
QAE2164.010 - Immersion temperature sensor 100 mm DC 0...10 V
QAE2164.015 - Immersion temperature sensor 150 mm DC 0...10 V
QAE2174.010 - Immersion temperature sensor 100 mm DC 4...20 mA
QAE2174.015 - Immersion temperature sensor 150 mm DC 4...20 mA
