QAE2154.010/MO Modbus RTU (RS-485)

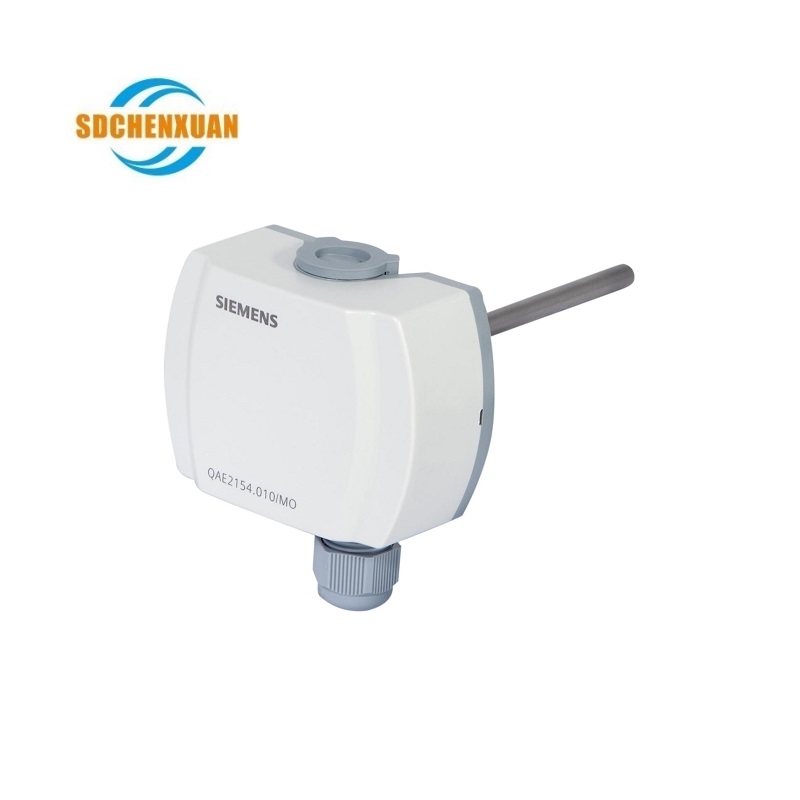

QAE2154.010/MO Immersion temperature sensor 100 mm, Modbus
- Immersion temperature sensor for acquiring the water temperature in pipes and tanks
- Modbus RTU (RS-485)
- On-event addressing via push button together with Climatix controllers
- DIP switches setting together with other controllers
Additional info
Fixing is made by protection pocket or compression fitting. No protection pocket is included as standard. The nominal pressure depends on the protection pocket used (see accessories). By using the compression fitting AQE2102 the nominal pressure is 16 bar (PN 16).
Technical Specifications
Signal output temperature Modbus RTU
Operating voltage AC 24 V, DC 13.5...35 V
Power consumption ≤ 1.5 VA
Measuring range, temperature -10...+120 °C
Measurement accuracy At 0...+70 °C: ±1 K, At -10...+120 °C: ±1.4 K
Time constant With protection pocket: 30 s at 2 m/s
Immersion length 100 mm
Material, immersion pocket Stainless steel
Connection, electrical Screw terminals
PN class PN 10
Degree of protection IP54
Dimensions (W x H x D) 80 x 88 x 39 mm
