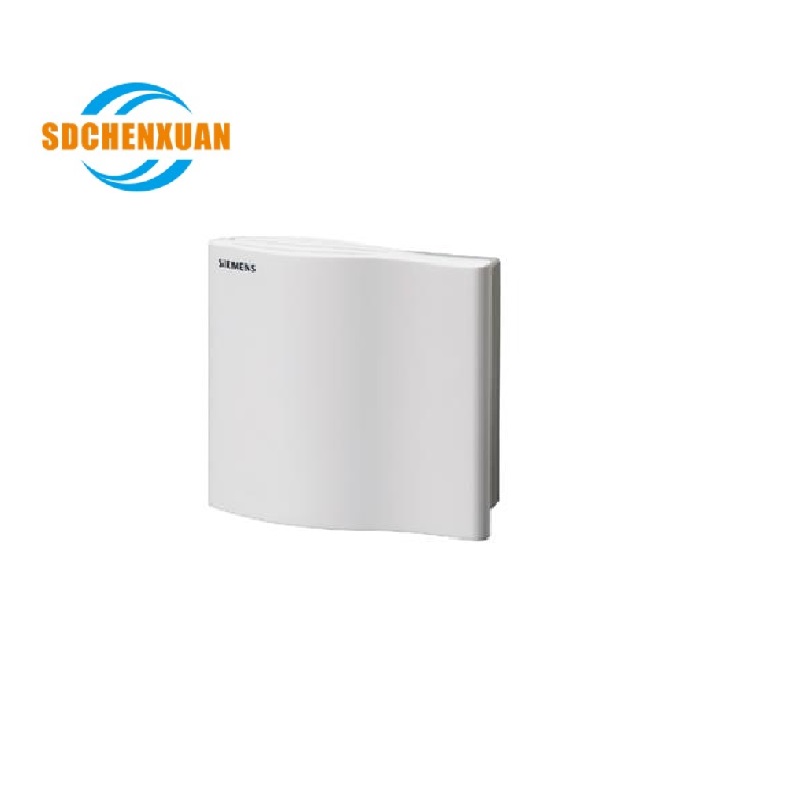

QAA32 Room temperature sensor NTC 3 kOhm
QAA32 Room temperature sensor NTC 3 kOhm
A32
| 100546196
| Product | ||
| Article Number (Market Facing Number) |
QAA32
| 100546196 |
|
| Product Description | QAA32 - Room temperature sensor NTC 3 kOhm | |
| Product family | QAA32 - Room temperature sensor NTC 3 kOhm | |
| Product Lifecycle (PLM) | PM300:Active Product | |
| Price data | ||
| Price Group / Headquarter Price Group | U1 / U1 | |
| List Price (w/o VAT) | Show prices | |
| Customer Price | Show prices | |
| Metal Factor | None | |
| Delivery information | ||
| Export Control Regulations | AL : N / ECCN : N | |
| Factory Production Time | 1 Day/Days | |
| Net Weight (kg) | 0.160 Kg | |
| Product Dimensions (W x L x H) | Not available | |
| Packaging Dimension | 10.40 x 10.60 x 5.50 | |
| Package size unit of measure | CMT | |
| Quantity Unit | 1 Piece | |
| Packaging Quantity | 1 | |
| Additional Product Information | ||
| EAN | 7612914001702 | |
| UPC | Not available | |
| Commodity Code | 90251990 | |
| LKZ_FDB/ CatalogID | BT_Catalog | |
| Product Group | QBE1 | |
| Country of origin | China | |
| Compliance with the substance restrictions according to RoHS directive | Since: 2014.06.24 | |
| Product class | Not available | |
| WEEE (2012/19/EU) Take-Back Obligation | Yes | |
| REACH Art. 33 Duty to inform according to the current list of candidates |
|
|
QAA32
Room temperature sensor NTC 3 kOhm
Technical specifications
|
Measuring range, temperature |
0...40 °C |
|
Sensing element, temperature |
NTC 3k |
|
Time constant |
6 min |
|
Measurement accuracy |
At 25 °C: ±0.3 K |
|
Connection, electrical |
Screw terminals |
|
Degree of protection |
IP30 |
|
Dimensions (W x H x D) |
97 × 100 × 36 mm |
|
Data sheet |
N1747 |
