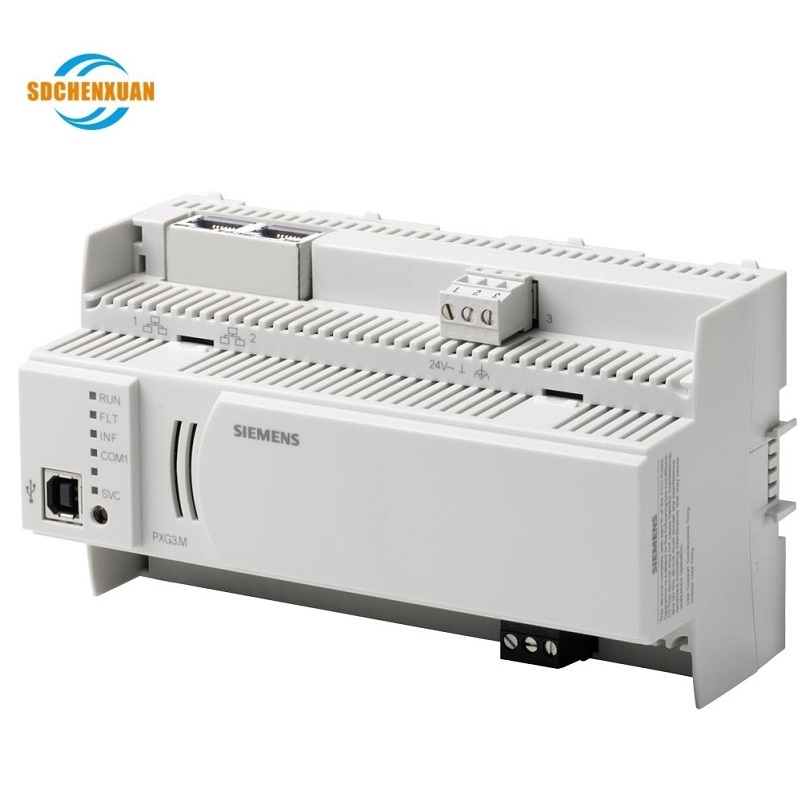

PXG3.M BACnet router, BACnet Ethernet/IP to BACnet/MS/TP
The PXG3.. BACnet router connects a BACnet Ethernet/IP network (BACnet/IPv4 and BACnet/IPv6) to a BACnet /LonTalk network (PXG3.L only), and/or a BACnet/MS/TP channel. BACnet objects are simultaneously transmitted among any and all networks.
PXG3.M BACnet router, BACnet Ethernet/IP to BACnet/MS/TP
The PXG3.. BACnet router connects a BACnet Ethernet/IP network (BACnet/IPv4 and BACnet/IPv6) to a BACnet /LonTalk network (PXG3.L only), and/or a BACnet/MS/TP channel. BACnet objects are simultaneously transmitted among any and all networks.
- Routing between BACnet MS/TP, BACnet/LonTalk (PXG3.L only), and BACnet/IP
- Routing between BACnet/IPv4 and BACnet/IPv6
- Configuration with Desigo Xwork Plus
- LED indication
- 2-port Ethernet switch for low-cost cabling (10/100 baseT)
- BACnet MS/TP (RS-485) baud rates: 9600, 19200, 38400, 76800
- BTL tested BACnet communication acoording to BACnet standard (rev 1.12 - as of Desigo V6.0)
- For use with the automation stations PXC12.., PXC200 and PXC00, which are commissioned with the Desigo Xworks Tool
