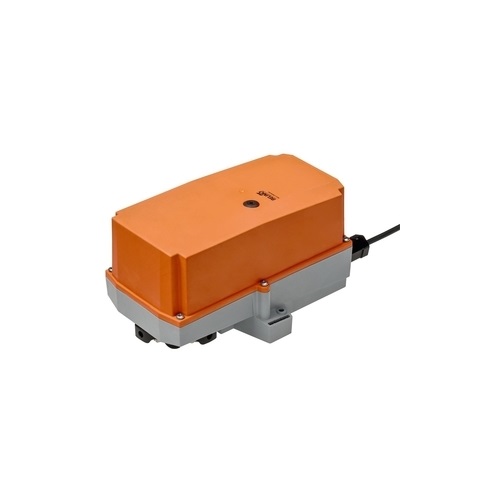

NM24P Rotary actuator (RobustLine), 10 Nm, AC/DC 24 V, Open/close, 3-point, 150 s, IP66/67

Voltage AC/DC AC/DC 24 V

Power consumption (running) 1.5 W

Power consumption (holding) 0.2 W

Power Consumption For Wire Sizing 3.5 VA

Connection Supply Control Cable 1 m, 3x 0.75 mm² (halogen-free)

Torque 10 Nm

Control type Open/close

3-point

Direction Of Motion Motor selectable with switch 0 (ccw rotation) / 1 (cw rotation)

Manual override With push-button, can be locked

Angle of rotation 95

Running time (motor) 150 s / 90°

Mechanical interface Universal shaft clamp 10...20 mm

Protection category IP66/67

Degree Of Protection NEMA NEMA 4X

Enclosure Type UL Enclosure Type 4X

Ambient Temperature -30...50°C [-22...122°F]
