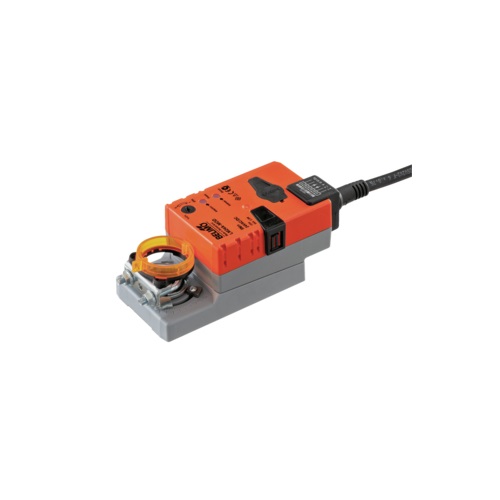

LM24A-MOD Rotary actuator, 5 Nm, AC/DC 24 V, BACnet MS/TP, Modbus RTU, MP-Bus, 2...10 V, 150 s (35...150 s), IP54

Voltage AC/DC AC/DC 24 V

Power consumption (running) 2.5 W

Power consumption (holding) 1.3 W

Power Consumption For Wire Sizing 5 VA

Connection Supply Control Cable 1 m, 6x 0.75 mm²

Torque 5 Nm

Control type BACnet MS/TP

Modbus RTU

MP-Bus

DC 2...10 V

DC 0.5...10 V

Hybrid (communicative / analogue)

Direction Of Motion Motor selectable with switch 0/1

Manual override With push-button, can be locked

Angle of rotation 95

Running time (motor) 150 s / 90°

Running time motor variable 35...150 s

Mechanical interface Universal shaft clamp 6...20 mm

Protection category IP54

Degree Of Protection NEMA NEMA 2

Enclosure Type UL Enclosure Type 2

Ambient Temperature -30...50°C [-22...122°F]
