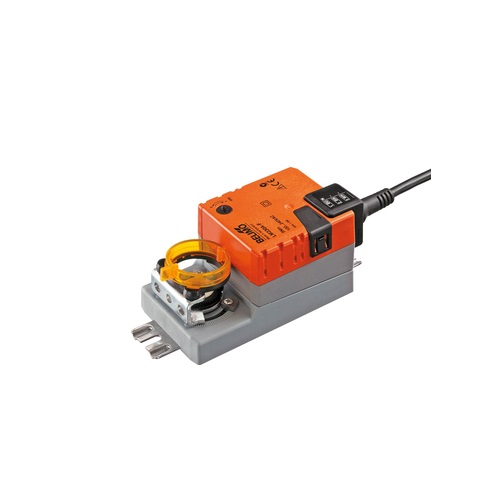

LM230A-F Rotary actuator, 5 Nm, AC 100...240 V, Open/close, 3-point, 150 s, Form fit 8x8 mm, IP54 List price¥1,646.50

Voltage AC/DC AC 100...240 V

Power consumption (running) 1.5 W

Power consumption (holding) 0.5 W

Power Consumption For Wire Sizing 3.5 VA

Connection Supply Control Cable 1 m, 3x 0.75 mm²

Torque 5 Nm

Control type Open/close

3-point

Direction Of Motion Motor selectable with switch 0 (ccw rotation) / 1 (cw rotation)

Manual override With push-button, can be locked

Angle of rotation 95

Running time (motor) 150 s / 90°

Mechanical interface Form fit 8x8 mm

Protection category IP54

Degree Of Protection NEMA NEMA 2

Enclosure Type UL Enclosure Type 2

Ambient Temperature -30...50°C [-22...122°F]
