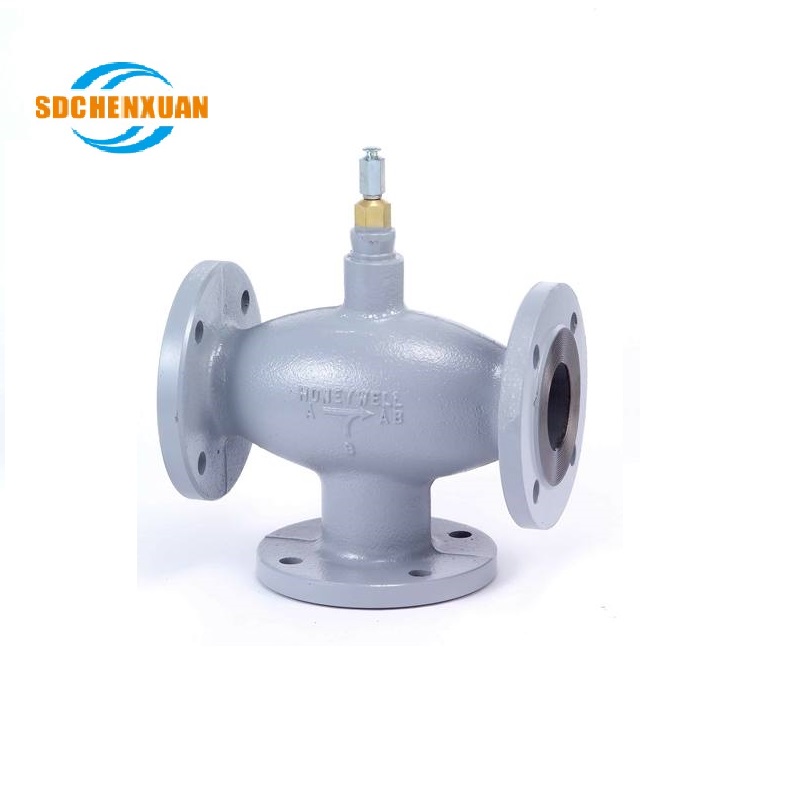

HONEYWELL V5329A SERIES
FEATURES
• Cast iron body with flanged end connections
• Metal to metal seating for long life span
• Self adjusting packing
• Accurate positioning to ensure state of the art temperature control
• Direct coupled electric and pneumatic actuators for easy mounting
• Constant total flow throughout full plug travel
SPECIFICATIONS
Action : Stem up to close port A-AB
Nominal pressure rating : PN16
Flow characteristic : Equal percentage port A-AB,
linear port B-AB
Rangeability : 50:1
Leakage rate : ≤0.5 % of kVS port A-AB
≤1 % of kVS port B-AB
Stroke : 20 mm
Valve body
End connections : Flanged per ISO 7005-2
Material : Cast iron (GG25)
Trim
Seat : Body integrated
Plug : Stainless steel, skirt guided
Stem : Stainless steel
Packing : Spring loaded PTFE cone rings
Medium temperature and max. pressure PN16
2 ... 120 °C; 1600 kPa
120 ... 150 °C; 1440 kPa
150 ... 170 °C; 1370 kPa
| Vertical Market | Item Code | Item Description |
| COMM WATER | V5329A1053 | 3-WAY VALVES PN16 DN40 KVS25 |
| COMM WATER | V5329A1061 | 3-WAY VALVES PN16 DN50 KVS40 |
| COMM WATER | V5329A2077 | 3 WAY FLANGED VALVE DN65 KV63 PN16 |
| COMM WATER | V5329A2085 | 3 WAY FLANGED VALVE 80MM KV100 PN16 |
