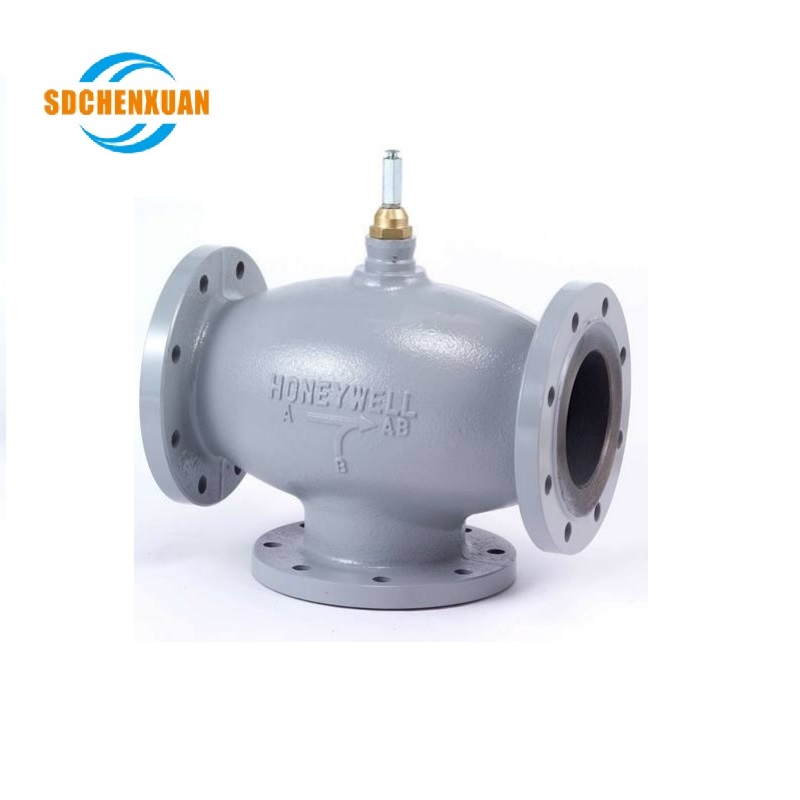

HONEYWELL V5050A SERIES
FEATURES
· Cast iron body with flanged end connections
· Low seat leakage rate
· Metal to metal seating for long life span
· Self adjusting packing
· Accurate positioning to ensure state of the art temperature control
· Easy mounting of direct coupled electric and pneumatic actuators
· Constant total flow throughout full plug travel
SPECIFICATIONS
Action :Stem up to close port A-AB
Nominal pressure rating : PN16
Flow characteristic :Equal percentage port A-AB,
ngl = 3.4
linear port B-AB
Rangeability : 50:1
Leakage rate : £0.1 % of kVS port A-AB
£1 % of kVS port B-AB
Stroke : 38 mm
Valve body
End connections : Flanged per ISO 7005-2
Material : Cast iron (GG25)
Trim
Seat : Body integrated
Stem : Stainless steel
Plug : Stainless steel, skirt guided
Packing : Spring loaded PTFE cone rings
Medium temperature and pressure PN16 2 ... 120 °C; 1600 kPa
120 ... 150 °C; 1440 kPa
Maximum temperature differential in alternating hot/cold water use : 60 K
| Vertical Market | Item Code | Item Description |
| COMM WATER | V5050A2088 | 3-way, 4" (DN100), Flange PN16, Body Cast Iron GG25 |
| COMM WATER | V5050A2106 | 3-way, 5" (DN125), Flange PN16, Body Cast Iron GG25 |
| COMM WATER | V5050A2114 | 3-way, 6" (DN150), Flange PN16, Body Cast Iron GG25 |
