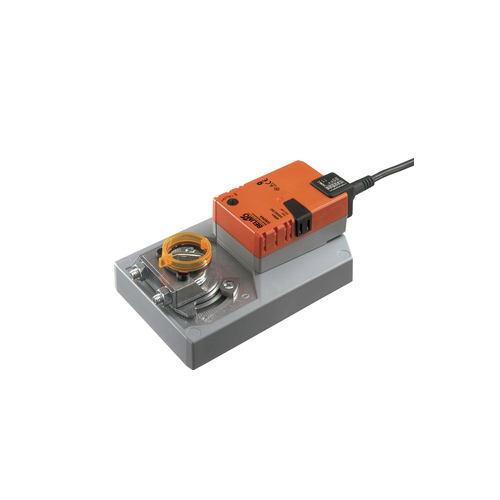

GM24A Rotary actuator, 40 Nm, AC/DC 24 V, Open/close, 150 s, IP54

Voltage AC/DC AC/DC 24 V

Power consumption (running) 4 W

Power consumption (holding) 2 W

Power Consumption For Wire Sizing 6 VA

Connection Supply Control Cable 1 m, 3x 0.75 mm²

Torque 40 Nm

Control type Open/close

Direction Of Motion Motor selectable with switch 0 (ccw rotation) / 1 (cw rotation)

Manual override With push-button, can be locked

Angle of rotation 95

Running time (motor) 150 s / 90°

Mechanical interface Universal shaft clamp reversible 12...26.7 mm

Protection category IP54

Degree Of Protection NEMA NEMA 2

Enclosure Type UL Enclosure Type 2

Ambient Temperature -30...50°C [-22...122°F]
