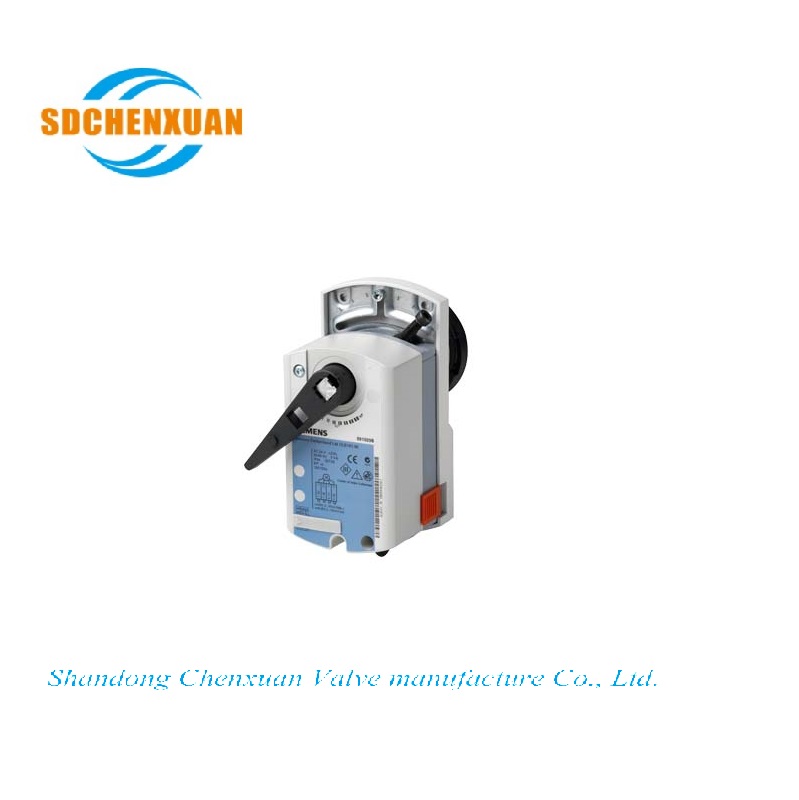

GLB..9E - Electromotoric rotary actuators
GLB..9E - Electromotoric rotary actuators 10 Nm without spring return for ball valves
Function
BPZ:GLB..9E
Electromotoric rotary actuators 10 Nm without spring return for ball valves
Electromotoric actuators for 2-position/3-position and modulating control, without spring return, pre-wired with 0.9 m long connection cables, for the operation of Siemens 2-port and 3-port valves, types VAG60../VBG60.., VAI60../VBI60.., VAG61../VBG61.., VAI61../VBI61.. and VWG41.. .
|
Torque |
10 Nm |
|
Positioning time |
150 s |
|
Cable length |
0.9 m |
|
Spring return function |
No |
|
Degree of protection |
IP54 |
|
Ambient temperature, operation |
-32...55 °C |
|
Dimensions (W x H x D) |
88 x 112 x 143 mm |
|
Mounting position |
Upright to horizontal |
|
Position feedback |
DC 0...10 V (GLB161.9E) |
Overview
|
Name |
ID |
Product Description |
Operating voltage |
Power consumption |
Positioning signal |
Auxiliary switch |
Spring return function |
Cable length |
|---|---|---|---|---|---|---|---|---|
|
GLB141.9E |
102314332 |
Electromotoric rotary actuator for ball valves, non-spring return, AC/DC 24 V, 2-position/3-position, 10 Nm, 150 s |
AC 24 V; DC 24 V |
3 VA; 1.3 W |
2-position/3-position |
0 |
No |
0.9 m |
|
GLB161.9E |
102314335 |
Electromotoric rotary actuator for ball valves, non-spring return, AC/DC 24 V, DC 0/2...10 V, 10 Nm, 150 s |
AC 24 V; DC 24 V |
2.5 VA; 1.5 W |
DC 0/2...10 V |
0 |
No |
0.9 m |
|
GLB341.9E |
102314333 |
Electromotoric rotary actuator for ball valves, non-spring return, AC 230 V, 2-position/3-position, 10 Nm, 150 s |
AC 230 V |
5.8 VA; 1.9 W |
2-position/3-position |
0 |
No |
0.9 m |
