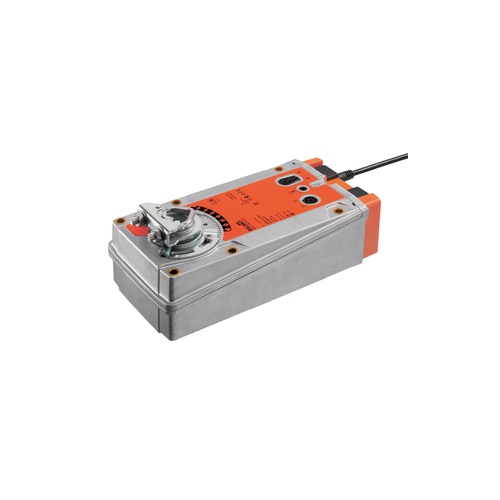

EF24A-SR Rotary actuator fail-safe, 30 Nm, AC/DC 24 V, 2...10 V, 150 s, IP54

Voltage AC/DC AC/DC 24 V

Power consumption (running) 7 W

Power consumption (holding) 4.5 W

Power Consumption For Wire Sizing 12 VA

Connection Supply Control Cable 1 m, 4x 0.75 mm² (halogen-free)

Torque 30 Nm

Control type DC 2...10 V

Direction Of Motion Motor selectable with switch L/R

Direction of rotation (fail-safe) Selectable by mounting L/R

Manual override By means of hand crank and locking switch

Angle of rotation 95

Running time (motor) 150 s / 90°

Running time (fail-safe) <20 s

Mechanical interface Universal shaft clamp 12...26.7 mm

Protection category IP54

Ambient Temperature -30...50°C [-22...122°F]
